M85049/79-13W03

Active

Amphenol Interconnect India

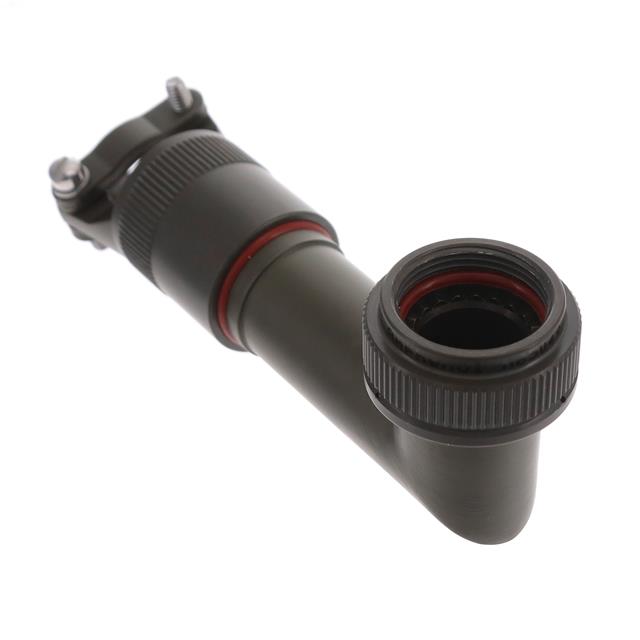

CONN BACKSHLL W/CLMP SZ13 C OLIV

Deep-Dive with AI

Search across all available documentation for this part.

M85049/79-13W03

Active

Amphenol Interconnect India

CONN BACKSHLL W/CLMP SZ13 C OLIV

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/79-13W03

Cable Exit	90 °
Cable Opening [Max] [diameter]	9.52 mm
Cable Opening [Max] [diameter]	0.375 in
Cable Opening [Min] [diameter]	6.35 mm
Cable Opening [Min] [diameter]	0.25 in
Color	Olive Drab
Diameter - Outside [diameter]	1 in
Diameter - Outside [diameter]	25.4 mm
Features	Clamp Screws
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	C
Shell Size - Insert	13
Shielding	Shielded
Type	Backshell, Cable Clamp

M85049/79 Series

Part	Type	Ingress Protection	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Features	Color	Shielding	Cable Exit	Shell Size - Insert	Shell Size - Insert	For Use With/Related Products	Plating	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/79-15Z03	Backshell Cable Clamp	Environment Resistant	0.38 in	0.25 in	9.65 mm	6.35 mm	29.21 mm	1.15 in	Aluminum Alloy	Clamp Screws	Black	Shielded	90 °	15	D	MIL-DTL-38999 Series III IV	Zinc Cobalt
Amphenol Interconnect India M85049/79-21Z05	Backshell Cable Clamp	Environment Resistant	0.63 in	0.5 in	16 mm	12.7 mm	39.37 mm	1.55 in	Aluminum Alloy	Clamp Screws	Black	Shielded	90 °	21	G	MIL-DTL-38999 Series III IV	Zinc Cobalt
Amphenol Interconnect India M85049/79-25Z06	Backshell Cable Clamp	Environment Resistant	0.75 in	0.63 in	19.05 mm	16 mm	46.99 mm	1.85 "	Aluminum Alloy	Clamp Screws	Black	Shielded	90 °	25	J	MIL-DTL-38999 Series III IV	Zinc Cobalt
Amphenol Interconnect India M85049/79-25Z09	Backshell Cable Clamp	Environment Resistant	1.13 in	1 in	28.7 mm	25.4 mm	46.99 mm	1.85 "	Aluminum Alloy	Clamp Screws	Black	Shielded	90 °	25	J	MIL-DTL-38999 Series III IV	Zinc Cobalt
Amphenol Interconnect India M85049/79-19Z07	Backshell Cable Clamp	Environment Resistant	0.88 in	0.75 in	22.35 mm	19.05 mm	35.56 mm	1.4 in	Aluminum Alloy	Clamp Screws	Black	Shielded	90 °	19	F	MIL-DTL-38999 Series III IV	Zinc Cobalt
Amphenol Interconnect India M85049/79-13W03	Backshell Cable Clamp	Environment Resistant					25.4 mm	1 in	Aluminum Alloy	Clamp Screws	Olive Drab	Shielded	90 °	13	C	MIL-DTL-38999 Series III IV	Cadmium	9.52 mm	6.35 mm	0.25 in	0.375 in
Amphenol Interconnect India M85049/79-23Z05	Backshell Cable Clamp	Environment Resistant	0.63 in	0.5 in	16 mm	12.7 mm	41.91 mm	1.65 "	Aluminum Alloy	Clamp Screws	Black	Shielded	90 °	23	H	MIL-DTL-38999 Series III IV	Zinc Cobalt
Amphenol Interconnect India M85049/79-17Z03	Backshell Cable Clamp	Environment Resistant	0.38 in	0.25 in	9.65 mm	6.35 mm	31.75 mm	1.25 in	Aluminum Alloy	Clamp Screws	Black	Shielded	90 °		17 E	MIL-DTL-38999 Series III IV	Zinc Cobalt
Amphenol Interconnect India M85049/79-13Z04	Backshell Cable Clamp	Environment Resistant					25.4 mm	1 in	Aluminum Alloy	Clamp Screws	Black	Shielded	90 °	13	C	MIL-DTL-38999 Series III IV	Zinc Cobalt					9.65 mm 12.7 mm	0.38 in 0.5 in
Amphenol Interconnect India M85049/79-23Z09	Backshell Cable Clamp	Environment Resistant					41.91 mm	1.65 "	Aluminum Alloy	Clamp Screws	Black	Shielded	90 °	23	H	MIL-DTL-38999 Series III IV	Zinc Cobalt					25.4 mm 28.7 mm	1 in 1.13 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.36
		1	$ 1927.13
		10	$ 64.57
		25	$ 62.08
		50	$ 60.02
		100	$ 56.70

Description

General part information

M85049/79 Series

Olive Drab Connector Backshell, Cable Clamp 13, C

Documents

Technical documentation and resources

No documents available
