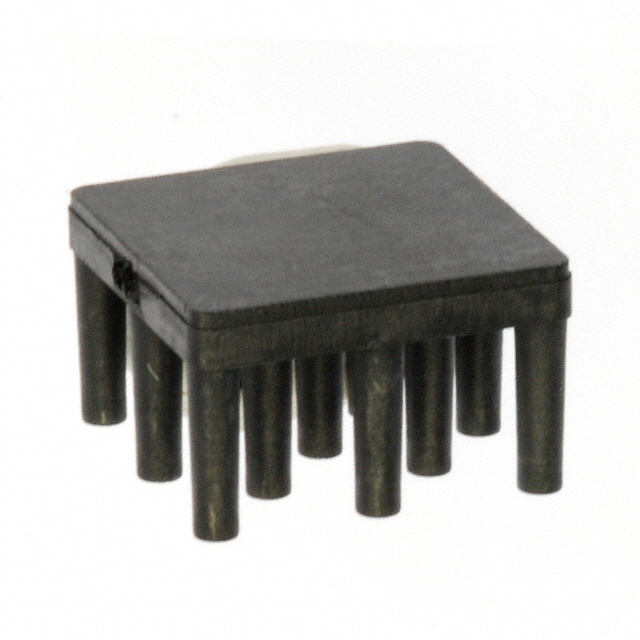

D10650-40
ActiveWakefield-Vette
HEAT SINK, FIN, PIN FIN ARRAY, OMNIDIRECT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D10650-40 |
|---|---|
| Attachment Method | Thermal Tape, Adhesive (Not Included) |
| Fin Height | 0.4 " |
| Fin Height | 10.16 mm |
| Length | 16.51 mm |
| Length | 0.65 " |
| Material | Composite |
| Package Cooled | BGA |
| Power Dissipation @ Temperature Rise | 2 W, 40 °C |
| Shape | Square, Pin Fins |
| Thermal Resistance @ Forced Air Flow | 25 °C/W, 350 LFM |
| Type | Top Mount |
| Width | 0.65 in |
| Width | 16.51 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.70 | |
| 10 | $ 4.58 | |||
| 26 | $ 4.45 | |||
| 52 | $ 4.21 | |||
| 104 | $ 3.96 | |||
| 260 | $ 3.71 | |||
| 520 | $ 3.59 | |||
| 1014 | $ 3.22 | |||
Description
General part information
D10650 Series
Heat Sink BGA Composite 2.0W @ 40°C Top Mount
