6GK57982LP102AA6
ActiveSiemens

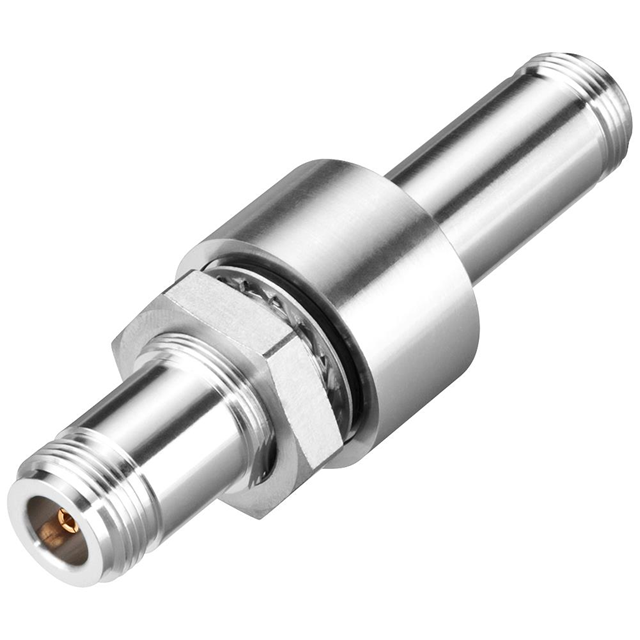

IWLAN LIGHTNING PROTECTOR LP 798
Deep-Dive with AI
Search across all available documentation for this part.
6GK57982LP102AA6
ActiveSiemens
IWLAN LIGHTNING PROTECTOR LP 798
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK57982LP102AA6 |
|---|---|
| Adapter Series | N to N |
| Adapter Type | Jack to Jack |
| Center Gender | Female to Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | N Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, N Jack |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insertion Loss | 0.2 dB |
| Mounting Feature | Bulkhead |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 413.60 | |
Description
General part information
6GK57982 Series
Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
