30EFL24-24W-I/O-RB

Active

ULTRAVOLT / Advanced Energy

EFL-SERIES FLOATING-HOT-DECK POW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

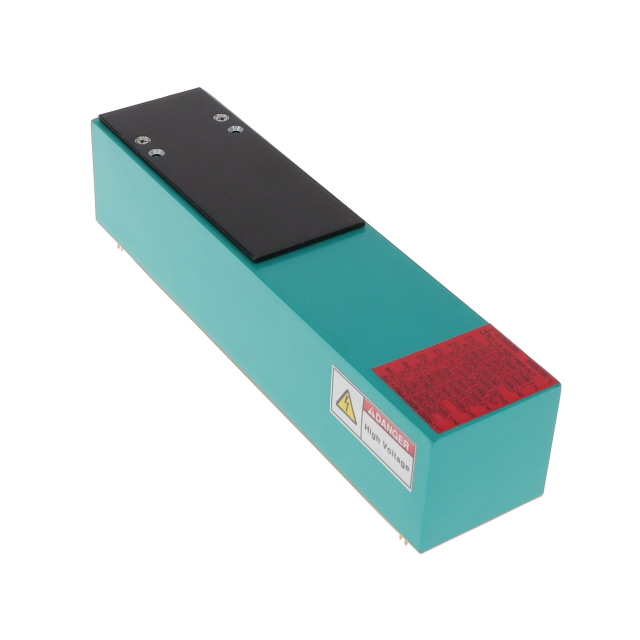

30EFL24-24W-I/O-RB

Active

ULTRAVOLT / Advanced Energy

EFL-SERIES FLOATING-HOT-DECK POW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	30EFL24-24W-I/O-RB

Applications	ITE (Commercial)
Approval Agency	CE, cURus
Current - Output (Max)	500 µA, 1 A, 50 mA
Mounting Type	Through Hole
Number of Outputs	4
Package / Case	28-DIP Module
Power (Watts)	28 W
Type	Isolated Module
Voltage - Input (Max) [Max]	24 V
Voltage - Isolation	30 kV
Voltage - Output 1	24 V
Voltage - Output 2	15 V
Voltage - Output 3	5.1 V
Voltage - Output 4	-15 V

30EFL24 Series

Isolated DC/DC Converters - Chassis Mount EFL-Series Floating-Hot-Deck power supply, Quad output, 15kV HV isolation, +24Vdc input, +24Vdc primary output, +15/-15/+5.1Vdc secondary outputs, 24W, Thru-hole/Chassis mount, Regulated, Two up/Two down prescisi

Part	Voltage - Output 1	Mounting Type	Applications	Number of Outputs	Voltage - Output 2	Voltage - Isolation	Power (Watts)	Approval Agency	Voltage - Output 4	Package / Case	Voltage - Input (Max) [Max]	Voltage - Output 3	Current - Output (Max)	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]
ULTRAVOLT / Advanced Energy 30EFL24-24W-I/O-RB-M-H
ULTRAVOLT / Advanced Energy 30EFL24-24W-I/O-RB	24 V	Through Hole	ITE (Commercial)	4	15 V	30 kV	28 W	CE cURus	-15 V	28-DIP Module	24 V	5.1 V	1 A 50 mA 500 µA	Isolated Module
ULTRAVOLT / Advanced Energy 15EFL24-24W-I/O-RB-E	24 V	Through Hole	ITE (Commercial)	4	15 V	15000 VDC	24 W	CE cURus	-15 V	28-DIP Module	26.4 V	5.1 V	1 A 50 mA 500 µA	Isolated Module	38.1 mm	33 mm	1.5 in	144.8 mm	1.3 "	5.7 "	21.6 V	55 °C	-20 C
ULTRAVOLT / Advanced Energy 30EFL24-24W-I/O-RB-E	24 V	Through Hole	ITE (Commercial)	4	15 V	30 kV	24 W	CE cURus	-15 V	28-DIP Module	26.4 V	5.1 V	1 A 50 mA 500 µA	Isolated Module							21.6 V	55 °C	-20 C
ULTRAVOLT / Advanced Energy 15EFL24-36W-I/O-RB-M-H
ULTRAVOLT / Advanced Energy 30EFL12-12W-I/O-RB-M-H
ULTRAVOLT / Advanced Energy 15EFL12-12W-I/O-RB-M-H
ULTRAVOLT / Advanced Energy 15EFL24-36W-I/O-RB-E	24 V	Through Hole	ITE (Commercial)	4	15 V	15000 VDC	36 W	CE cURus	-15 V	28-DIP Module	26.4 V	5.1 V	1 A 50 mA 500 µA	Isolated Module	38.1 mm	33 mm	1.5 in	144.8 mm	1.3 "	5.7 "	21.6 V	55 °C	-20 C
ULTRAVOLT / Advanced Energy 15EFL12-12W-I/O-RB
ULTRAVOLT / Advanced Energy 15EFL12-12W-I/O-RB-E	12 V	Through Hole	ITE (Commercial)	4	15 V	15000 VDC	12 W	CE cURus	-15 V	28-DIP Module	12.6 V	5.1 V	1 A 50 mA 500 µA	Isolated Module	38.1 mm	33 mm	1.5 in	144.8 mm	1.3 "	5.7 "	11.4 V	55 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2291.80
