1N4448,143

Obsolete

Freescale Semiconductor - NXP

DIODE STANDARD 100V 200MA ALF2

Search across all available documentation for this part.

Obsolete

Freescale Semiconductor - NXP

DIODE STANDARD 100V 200MA ALF2

Technical Specifications

Parameters and characteristics for this part

Specification	1N4448,143

Capacitance @ Vr, F	4 pF
Current - Average Rectified (Io)	200 mA
Current - Reverse Leakage @ Vr	25 nA
Mounting Type	Through Hole
Operating Temperature - Junction	200 °C

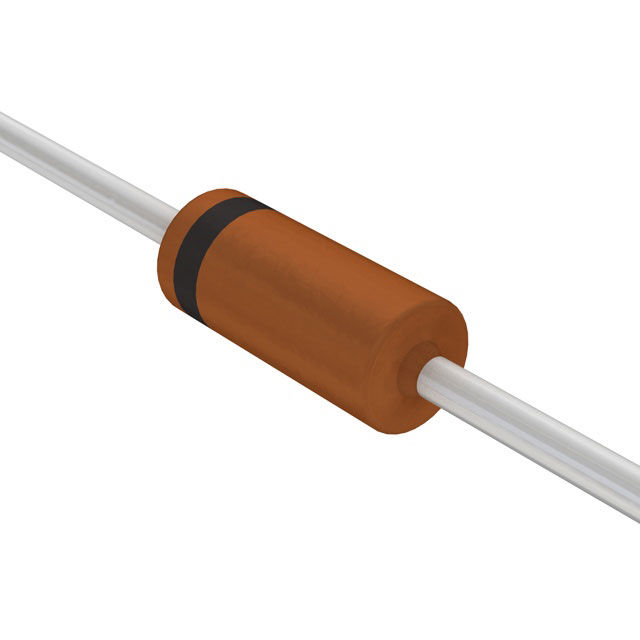

Package / Case	Axial, DO-35, DO-204AH
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	ALF2
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Package / Case	Speed	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Operating Temperature - Junction	Mounting Type	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Capacitance @ Vr, F	Supplier Device Package	Technology
Freescale Semiconductor - NXP 1N4448,143	Axial DO-204AH DO-35	Any Speed	200 mA	100 V	1 V	25 nA	200 °C	Through Hole	200 mA	4 ns	4 pF	ALF2	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 100 V 200mA Through Hole ALF2
