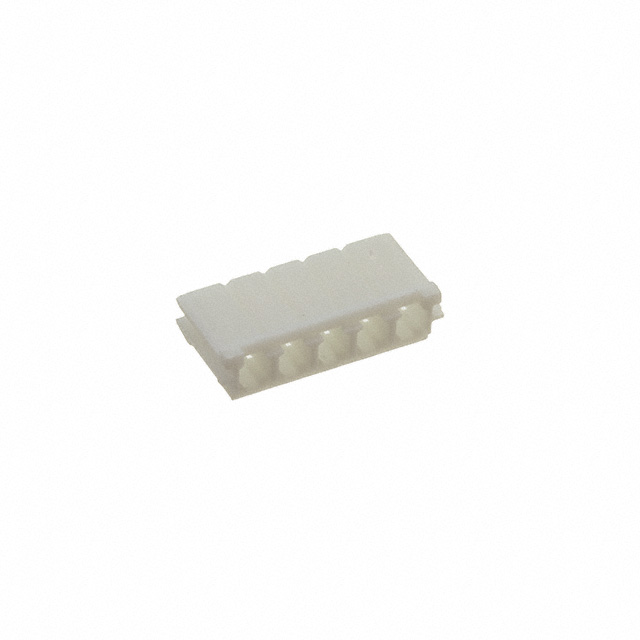

25CH-C-05

Active

Adam Tech

CONN RCPT HSG 5POS 2.50MM

Search across all available documentation for this part.

Active

Adam Tech

CONN RCPT HSG 5POS 2.50MM

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Note	Color	Contact Type	Contact Termination	Insulation Material	Pitch [x]	Pitch [x]	Connector Type	Fastening Type	Number of Positions
Adam Tech 25CH-C-10	Free Hanging (In-Line)	-25 °C	85 °C	1	Contacts Not Included	White	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Receptacle	Friction Lock	10
Adam Tech 25CH-C-05	Free Hanging (In-Line)	-25 °C	85 °C	1	Contacts Not Included	White	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Receptacle	Friction Lock
Adam Tech 25CH-C-06	Free Hanging (In-Line)	-25 °C	85 °C	1	Contacts Not Included	White	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Receptacle	Friction Lock	6
Adam Tech 25CH-C-03	Free Hanging (In-Line)	-25 °C	85 °C	1	Contacts Not Included	White	Female Socket	Crimp	Polyamide (PA66) Nylon 6/6	0.098 in	2.5 mm	Receptacle	Friction Lock
