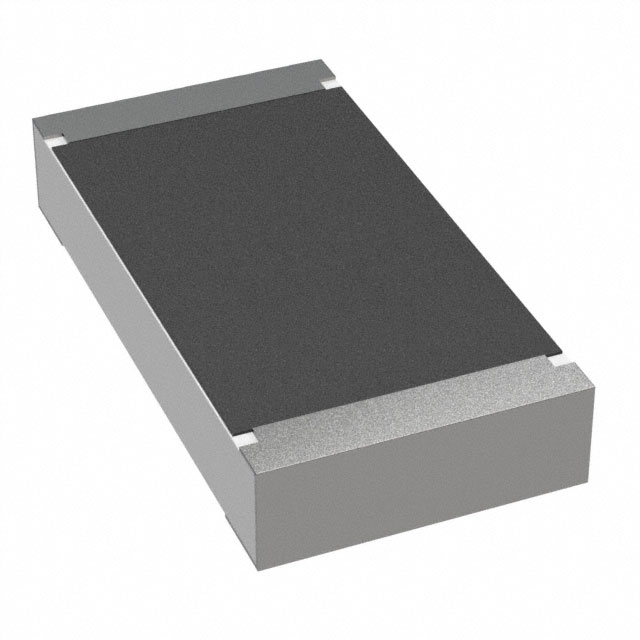

CRGS1206J3R3
ActiveTE Connectivity Passive Product
RES SMD 3.3 OHM 5% 0.6W 1206
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CRGS1206J3R3
ActiveTE Connectivity Passive Product
RES SMD 3.3 OHM 5% 0.6W 1206
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CRGS1206J3R3 |
|---|---|
| Composition | Thick Film |
| Features | Pulse Withstanding |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 600 mW |
| Resistance | 3.3 Ohms |
| Size / Dimension [x] | 0.122 " |
| Size / Dimension [x] | 3.1 mm |
| Size / Dimension [y] | 1.55 mm |
| Size / Dimension [y] | 0.061 in |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 400 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20000 | $ 0.09 | |
Description
General part information
CRGS1206 Series
3.3 Ohms ±5% 0.6W Chip Resistor 1206 (3216 Metric) Pulse Withstanding Thick Film
