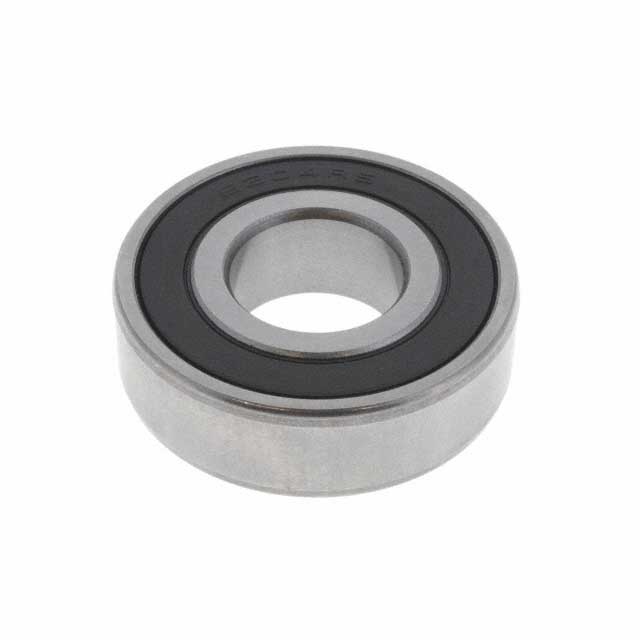

6204-2RS-RT
ActiveMechatronics Bearing Group
BALL BEARING SEALED 20X47X14MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6204-2RS-RT
ActiveMechatronics Bearing Group
BALL BEARING SEALED 20X47X14MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6204-2RS-RT |
|---|---|
| Dynamic Load Rating | 2220 lbs |
| Features | Contact Seal (2) |
| Inner Diameter [diameter] | 0.785 in |
| Inner Diameter [diameter] | 19.93 mm |
| Material | Bearing Steel |
| Outer Diameter [diameter] | 1.85 in |
| Outer Diameter [diameter] | 47 mm |
| Static Load Rating | 1390 lbs |
| Type | Ball Bearing |
| Width | 0.551 in |
| Width | 14 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.14 | |
| 10 | $ 1.98 | |||
| 100 | $ 1.77 | |||
| 1000 | $ 1.55 | |||
| 5000 | $ 1.39 | |||
Description
General part information
6204 Series
Ball Bearing 0.785" (19.93mm) ID X 1.850" (47.00mm) OD X 0.551" (14.00mm) W
Documents
Technical documentation and resources
