Q-0300D0003.75M
ActiveAmphenol Custom Cable

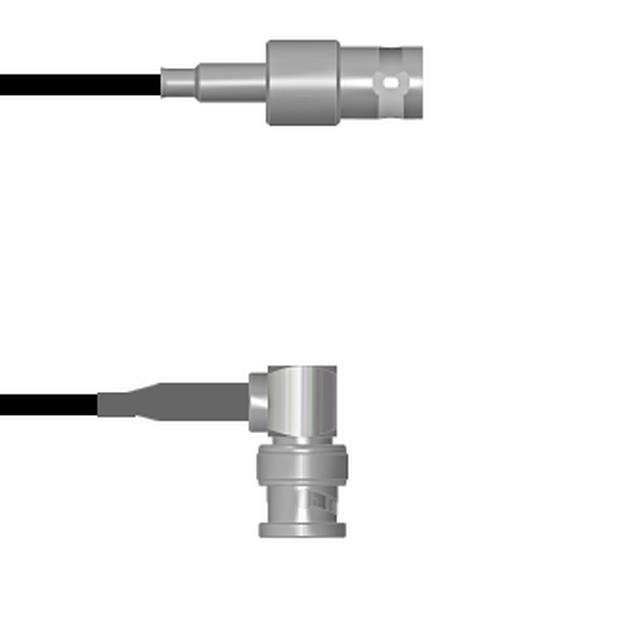

CBL ASSY BNC JACK TO PLUG 29.53"
Deep-Dive with AI
Search across all available documentation for this part.
Q-0300D0003.75M
ActiveAmphenol Custom Cable
CBL ASSY BNC JACK TO PLUG 29.53"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0300D0003.75M |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BNC Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 4 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to BNC |
Q-0300D0 Series
| Part | Overall Impedance | 2nd Connector | Length | Length | Color | 1st Connector | 1st Contact Gender | 2nd Contact Gender | 2nd Connector Mounting Type | 1st Connector Mounting Type | Frequency - Max [Max] | Style | Features | Cable Type | Length [x] | Length [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | 3 in | 76.2 mm | Copper | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-316 | |||
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | 12 " | 304.8 mm | Black | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-174 | |||
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | Black | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-174 | 9.843 " | 250 mm | |||
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | Copper | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-316 | 9.843 " | 250 mm | |||
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | 84 in | 2.1 m | Copper | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-316 | 7 ft | ||
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | 29.53 " | 750 mm | Black | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-174 | |||
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | 5 ' | 1.5 m | Black | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-174 | 5 ft | ||
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | 108 in | 2.7 m | Black | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-174 | 9 ft | ||
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | 19.69 " | 50 cm | Copper | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-316 | |||
Amphenol Custom Cable | 50 Ohms | BNC Plug Right Angle | 9 " | 228.6 mm | Black | BNC Jack | Female | Male | Free Hanging (In-Line) | Free Hanging (In-Line) | 4 GHz | BNC to BNC | Shielded | RG-174 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 62.50 | |
| 25 | $ 61.27 | |||
| 50 | $ 60.05 | |||
| 100 | $ 58.82 | |||
| 250 | $ 57.60 | |||
Description
General part information
Q-0300D0 Series
Cable Assembly Coaxial BNC to BNC RG-174 29.53" (750.00mm)
Documents
Technical documentation and resources
No documents available
