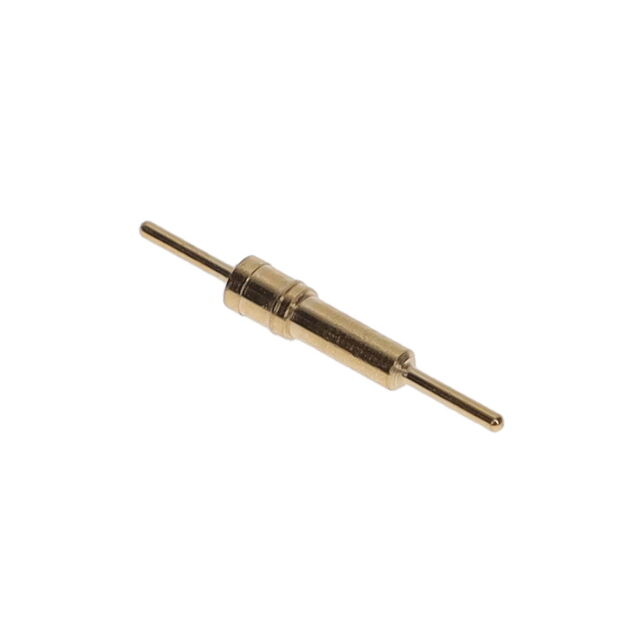

9218-0-00-34-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN
Deep-Dive with AI
Search across all available documentation for this part.
9218-0-00-34-00-00-03-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9218-0-00-34-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 1.45 mm |
| Flange Diameter [diameter] | 0.057 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.245 in |
| Length - Above Flange [x] | 6.22 mm |
| Length - Below Flange [x] | 3.05 mm |
| Length - Below Flange [x] | 0.12 in |
| Length - Overall [x] | 0.44 in |
| Length - Overall [x] | 11.18 mm |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.46 mm |
| Pin Size - Above Flange [diameter] | 0.018 in |
| Pin Size - Below Flange [diameter] | 0.46 mm |
| Pin Size - Below Flange [diameter] | 0.018 " |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.40 | |
| 10 | $ 1.22 | |||
| 25 | $ 1.17 | |||
| 50 | $ 1.14 | |||
| 100 | $ 1.09 | |||
| 250 | $ 0.99 | |||
| 500 | $ 0.91 | |||
| 1000 | $ 0.78 | |||
| 3000 | $ 0.73 | |||
Description
General part information
9218-0 Series
PC Pin Terminal Connector Through Hole Gold 0.018" (0.46mm) Dia
Documents
Technical documentation and resources
No documents available
