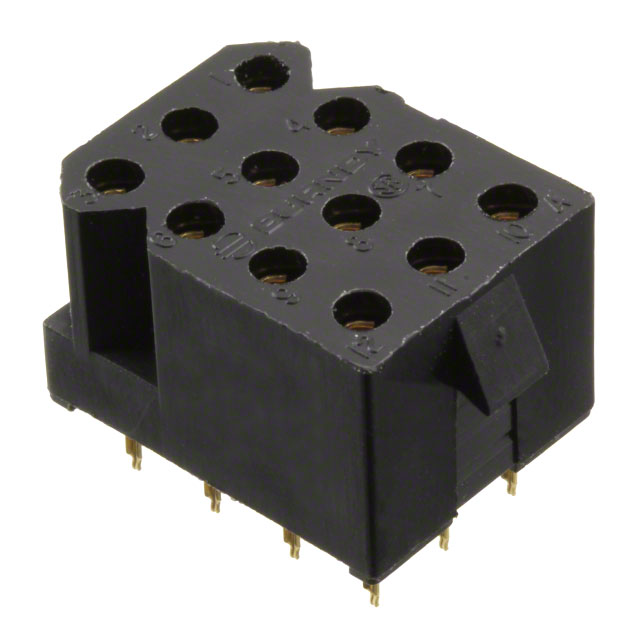

SMS12R3S6

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG 12POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

SMS12R3S6

Active

Souriau-Sunbank by Eaton

CONN RCPT HSG 12POS 5.08MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SMS12R3S6

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male or Female
Fastening Type	Latch Holder
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel Mount, Snap-In
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Row Spacing	5.08 mm
Row Spacing	0.2 in

SMS12R Series

Part	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Color	Termination	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Material	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Type	Overall Contact Length	Overall Contact Length	Connector Type	Material Flammability Rating	Number of Positions Loaded	Shrouding	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Ingress Protection	Insulation Material	Number of Positions	Contact Shape	Style	Fastening Type	Contact Length - Mating	Contact Length - Mating	Row Spacing	Row Spacing	Contact Termination	Color	Pitch [x]	Pitch [x]	Note	Features	Number of Rows	Contact Finish Thickness - Mating
Souriau-Sunbank by Eaton SMS12R4S6	Tin	-55 °C	125 °C	5.08 mm	0.2 "	Black	Solder	0.173 in	4.4 mm	Gold	Copper Alloy	Through Hole	5.08 mm	0.2 in	Male Pin	0.972 in	24.7 mm	Header	UL94 V-0	All	Unshrouded	5 A	16 Áin	0.41 Ám	IP40	Polyester Glass Filled	12	Circular	Board to Cable/Wire	Locking Ramp	0.28 in	7.11 mm
Souriau-Sunbank by Eaton SMS12R3S6		-40 °C	105 ░C									Panel Mount Snap-In			Male or Female			Receptacle								Polyamide (PA66) Nylon 6/6	12			Latch Holder			5.08 mm	0.2 in	Crimp	Gray	0.2 in	5.08 mm	Contacts Not Included
Souriau-Sunbank by Eaton SMS12RE4S6	Tin	-55 °C	125 °C	5.08 mm	0.2 "	Black	Solder	0.173 in	4.4 mm	Gold	Copper Alloy	Through Hole	5.08 mm	0.2 in	Male Pin	0.972 in	24.7 mm	Header	UL94 V-0	All	Unshrouded	5 A	16 Áin	0.41 Ám	IP40	Polyester Glass Filled	12	Circular	Board to Cable/Wire	Locking Ramp	0.28 in	7.11 mm								Mounting Flange
Souriau-Sunbank by Eaton SMS12RDH1		-40 °C	105 ░C									Free Hanging (In-Line)			Male or Female			Receptacle								Polyamide (PA66) Nylon 6/6	12			Locking Ramp			5.08 mm	0.2 in	Crimp		0.2 in	5.08 mm	Contacts Not Included	Strain Relief	3
Souriau-Sunbank by Eaton SMS12RE4D70		-55 °C	125 °C	5.08 mm	0.2 "	Black	Solder	0.173 in	4.4 mm	Gold	Copper Alloy	Through Hole	5.08 mm	0.2 in	Male Pin	0.972 in	24.7 mm	Header	UL94 V-0	All	Unshrouded	5 A			IP40	Polyester Glass Filled	12	Circular	Board to Cable/Wire	Locking Ramp	0.28 in	7.11 mm								Mounting Flange		Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SMS12R Series

12 Rectangular Connectors - Housings Receptacle Gray 0.200" (5.08mm)

Documents

Technical documentation and resources

No documents available
