0334724105

Active

Molex

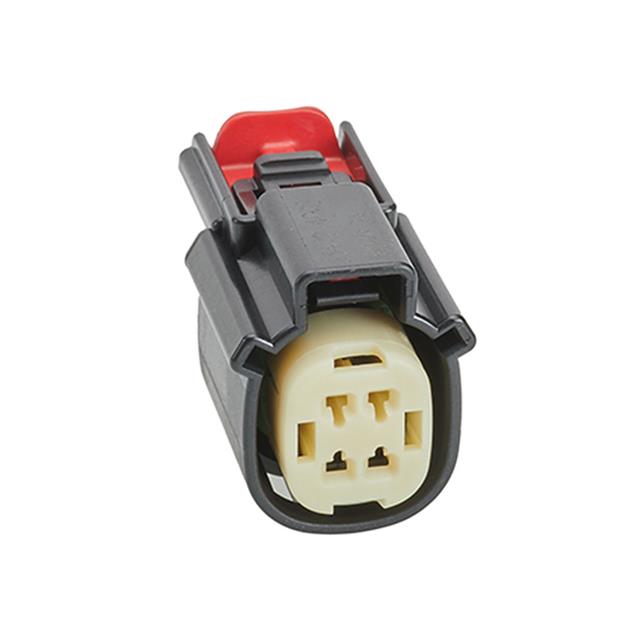

MX150 ASSY RCP 2X2 CPA BLK A/4

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Specification

0334724105

Active

Molex

MX150 ASSY RCP 2X2 CPA BLK A/4

Deep-Dive with AI

DocumentsProduct Specification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0334724105

null

033472 Series

Part	Contact Termination	Features	Mounting Type	Color	Number of Rows	Contact Type	Connector Type	Note	Fastening Type	Number of Positions	Pitch [x]	Pitch [x]	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]
Molex 0334720401	Crimp	Sealed	Free Hanging (In-Line)	Black	2	Female Socket	Receptacle	Contacts Not Included	Latch Holder	4	3.5 mm	0.138 in
Molex 0334724801	Crimp	Sealed	Free Hanging (In-Line)	Black	2	Female Socket	Receptacle	Contacts Not Included	Latch Holder	8	3.5 mm	0.138 in	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)
Molex 0334720617	Crimp	Connector Position Assurance (CPA) Sealed	Free Hanging (In-Line)	Gray	2	Female Socket	Receptacle	Contacts Not Included	Latch Holder	6	3.5 mm	0.138 in		125 °C	-40 °C
Molex 0334720809	Crimp	Connector Position Assurance (CPA) Sealed	Free Hanging (In-Line)	Green	2	Female Socket	Receptacle	Contacts Not Included	Latch Holder	8	3.5 mm	0.138 in
Molex 0334721302	Crimp		Free Hanging (In-Line)	Gray	2	Female Socket	Receptacle	Contacts Not Included	Latch Holder	12	3.5 mm	0.138 in	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)
Molex 0334728173
Molex 0334724044	Crimp	Connector Position Assurance (CPA) Sealed	Free Hanging (In-Line)	Gray	2	Female Socket	Receptacle	Contacts Not Included	Latch Holder	4	3.5 mm	0.138 in	Glass Filled Nylon Polyamide (PA) Syndiotatic Polystyrene (SPS)
Molex 0334724105
Molex 0334720808	Crimp	Connector Position Assurance (CPA) Sealed	Free Hanging (In-Line)	Brown	2	Female Socket	Receptacle	Contacts Not Included	Latch Holder	8	3.5 mm	0.138 in
Molex 0334720443	Crimp	Sealed	Free Hanging (In-Line)	Gray	2	Female Socket	Receptacle	Contacts Not Included	Latch Holder	4	3.5 mm	0.138 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.45
		10	$ 1.23
		25	$ 1.15
		50	$ 1.10
		100	$ 1.05
		250	$ 0.98
		500	$ 0.93

Description

General part information

033472 Series

Rectangular Connectors - Housings
