960-27-33-F-AB-0

Active

Wakefield-Vette

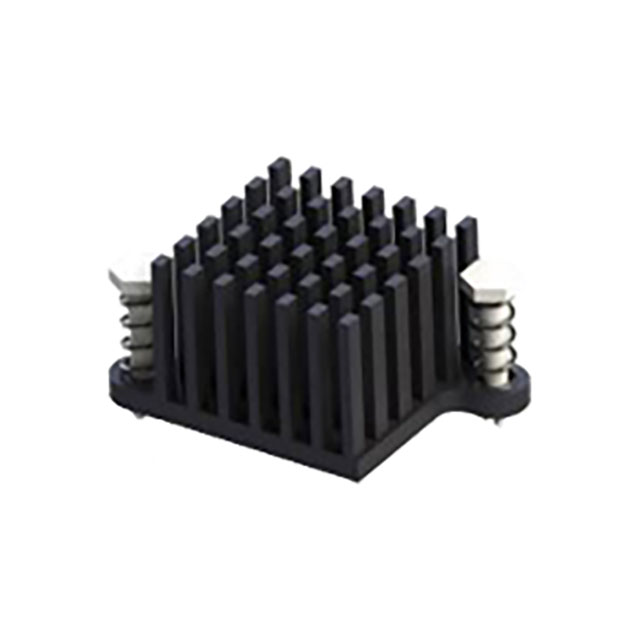

HEAT SINK, PUSH-PIN, OMNIDIRECT, ALUMINUM, ANODIZED BLACK,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

960-27-33-F-AB-0

Active

Wakefield-Vette

HEAT SINK, PUSH-PIN, OMNIDIRECT, ALUMINUM, ANODIZED BLACK,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	960-27-33-F-AB-0

Attachment Method	Push Pin
Fin Height [z]	33 mm
Fin Height [z]	1.299 in
Length	1.063 in
Length	27 mm
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	BGA
Shape	Square, Pin Fins
Thermal Resistance @ Forced Air Flow	200 LFM, 2.4 °C/W
Type	Top Mount
Width [y]	1.063 in
Width [y]	27 mm

960-27 Series

Part	Material	Length	Length	Package Cooled	Fin Height [custom]	Fin Height [custom]	Shape	Thermal Resistance @ Forced Air Flow	Width [y]	Width [y]	Type	Material Finish	Attachment Method	Fin Height [z]	Fin Height [z]	Fin Height	Fin Height
Wakefield-Vette 960-27-23-F-AB-0	Aluminum	1.063 in	27 mm	BGA	0.905 in	23 mm	Pin Fins Square	3 °C/W 200 LFM	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin
Wakefield-Vette 960-27-33-F-AB-0	Aluminum	1.063 in	27 mm	BGA			Pin Fins Square	2.4 °C/W 200 LFM	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin	33 mm	1.299 in
Wakefield-Vette 960-27-15-D-AB-0	Aluminum	1.063 in	27 mm	BGA			Pin Fins Square	4.5 °C/W 200 LFM	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin			0.59 "	15 mm
Wakefield-Vette 960-27-23-D-AB-0	Aluminum	1.063 in	27 mm	BGA	0.905 in	23 mm	Pin Fins Square	3 °C/W 200 LFM	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin
Wakefield-Vette 960-27-12-D-AB-0	Aluminum	1.063 in	27 mm	BGA			Pin Fins Square	5.7 °C/W	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin	12 mm	0.472 in
Wakefield-Vette 960-27-12-F-AB-0	Aluminum	1.063 in	27 mm	BGA			Pin Fins Square	5.7 °C/W	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin	12 mm	0.472 in
Wakefield-Vette 960-27-28-S-AB-0	Aluminum	1.063 in	27 mm	BGA			Pin Fins Square	2.5 °C/W 200 LFM	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin	28 mm	1.102 in
Wakefield-Vette 960-27-18-S-AB-0	Aluminum	1.063 in	27 mm	BGA	0.709 in	18 mm	Pin Fins Square	3.7 °C/W	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin
Wakefield-Vette 960-27-33-D-AB-0	Aluminum	1.063 in	27 mm	BGA			Pin Fins Square	2.4 °C/W 200 LFM	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin	33 mm	1.299 in
Wakefield-Vette 960-27-21-D-AB-0	Aluminum	1.063 in	27 mm	BGA			Pin Fins Square	3.3 °C/W	1.063 in	27 mm	Top Mount	Black Anodized	Push Pin			0.827 in	21 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 4.99
		10	$ 4.86
		25	$ 4.75

Description

General part information

960-27 Series

Heat Sink BGA Aluminum Top Mount
