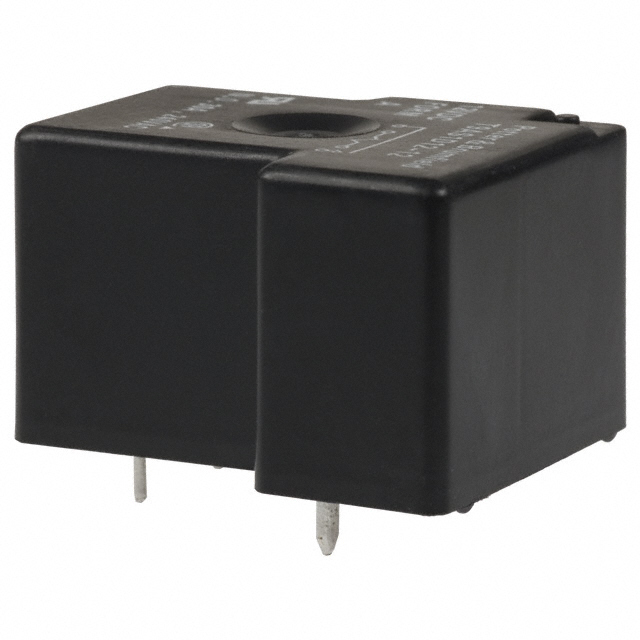

T9AS5D12-48

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 20A 48V

Deep-Dive with AI

Search across all available documentation for this part.

T9AS5D12-48

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPDT 20A 48V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T9AS5D12-48

Coil Current	21 mA
Coil Insulation	Class F
Coil Resistance	2.3 kOhms
Coil Type	Non Latching
Coil Voltage	48 VDC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	20 A
Load - Max Switching	5540 VA
Mounting Type	Through Hole
Must Operate Voltage	36 VDC
Must Release Voltage	4.8 VDC
Operate Time	15 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	15 ms
Seal Rating	Sealed - Fully
Switching Voltage [Max]	277 VAC
Termination Style	PC Pin

T9AS5 Series

Part	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Coil Resistance	Must Operate Voltage	Mounting Type	Seal Rating	Coil Voltage	Contact Rating (Current)	Contact Form	Operate Time	Coil Insulation	Termination Style	Termination Style	Coil Type	Must Release Voltage	Contact Material	Coil Current	Relay Type	Switching Voltage [Max]	Load - Max Switching
TE Connectivity Potter & Brumfield Relays T9AS5L22-12	15 ms	85 °C	-55 °C	155 Ohms	9 VDC	Through Hole	Sealed - Fully	12 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin Quick Connect	0.25 in	Non Latching	1.2 VDC	Silver Cadmium Oxide (AgCdO)	75 mA	General Purpose	277 VAC	5540 VA
TE Connectivity Potter & Brumfield Relays T9AS5D22-5	15 ms	85 °C	-55 °C	25 Ohms	3.75 VDC	Through Hole	Sealed - Fully	5 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin Quick Connect	0.25 in	Non Latching	0.5 VDC	Silver Cadmium Oxide (AgCdO)	200 mA	General Purpose	277 VAC	5540 VA
TE Connectivity Potter & Brumfield Relays T9AS5D12-48	15 ms	85 °C	-55 °C	2.3 kOhms	36 VDC	Through Hole	Sealed - Fully	48 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin		Non Latching	4.8 VDC	Silver Cadmium Oxide (AgCdO)	21 mA	General Purpose	277 VAC	5540 VA
TE Connectivity Potter & Brumfield Relays T9AS5D24-5	15 ms	85 °C	-55 °C	25 Ohms	3.75 VDC	Through Hole	Sealed - Fully	5 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin Quick Connect	0.25 in	Non Latching	0.5 VDC	Silver Tin Oxide Indium Oxide (AgSnOInO)	200 mA	General Purpose	277 VAC	5540 VA
TE Connectivity Potter & Brumfield Relays T9AS5D12-12	15 ms	85 °C	-55 °C	144 Ohms	9 VDC	Through Hole	Sealed - Fully	12 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin		Non Latching	1.2 VDC	Silver Cadmium Oxide (AgCdO)	83 mA	General Purpose	277 VAC	5540 VA
TE Connectivity Potter & Brumfield Relays T9AS5D22-22	15 ms	85 °C	-55 °C		16.5 VDC	Through Hole	Sealed - Fully	22 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin Quick Connect	0.25 in	Non Latching	2.2 VDC	Silver Cadmium Oxide (AgCdO)		General Purpose	277 VAC	5540 VA
TE Connectivity Potter & Brumfield Relays T9AS5D22-24	15 ms	85 °C	-55 °C	576 Ohms	18 VDC	Through Hole	Sealed - Fully	24 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin Quick Connect	0.25 in	Non Latching	2.4 VDC	Silver Cadmium Oxide (AgCdO)	41.7 mA	General Purpose	277 VAC	5540 VA
TE Connectivity Potter & Brumfield Relays T9AS5L22-18	15 ms	85 °C	-55 °C	380 Ohms	13.5 VDC	Through Hole	Sealed - Fully	18 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin Quick Connect	0.25 in	Non Latching	1.8 VDC	Silver Cadmium Oxide (AgCdO)	50 mA	General Purpose	277 VAC	5540 VA
TE Connectivity Potter & Brumfield Relays T9AS5D14-5	15 ms	85 °C	-55 °C	25 Ohms	3.75 VDC	Through Hole	Sealed - Fully	5 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin		Non Latching	0.5 VDC	Silver Tin Oxide Indium Oxide (AgSnOInO)	200 mA	General Purpose	277 VAC	5540 VA
TE Connectivity Potter & Brumfield Relays T9AS5D24-12	15 ms	85 °C	-55 °C	144 Ohms	9 VDC	Through Hole	Sealed - Fully	12 VDC	20 A	SPDT (1 Form C)	15 ms	Class F	PC Pin Quick Connect	0.25 in	Non Latching	1.2 VDC	Silver Tin Oxide Indium Oxide (AgSnOInO)	83.3 mA	General Purpose	277 VAC	5540 VA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.61

Description

General part information

T9AS5 Series

General Purpose Relay SPDT (1 Form C) 48VDC Coil Through Hole

Documents

Technical documentation and resources

No documents available
