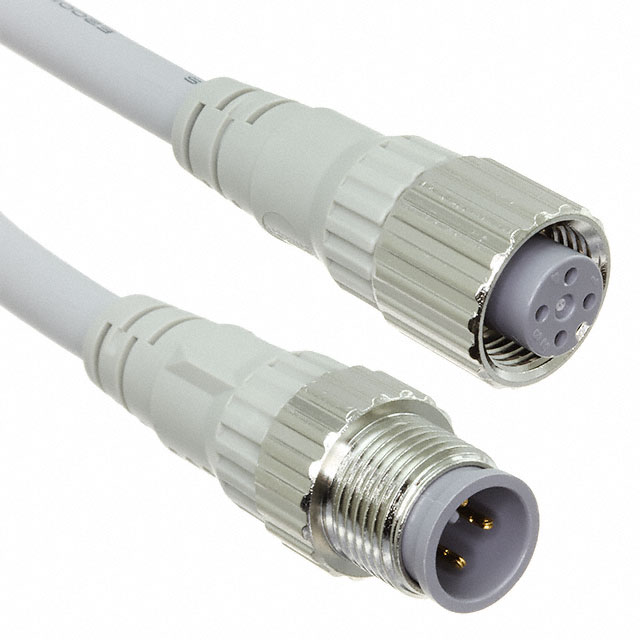

XS2WD423C81F

Active

Omron Electronics Inc-EMC Div

CBL 4POS RCPT RA TO PLUG 3.28'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XS2WD423C81F

Active

Omron Electronics Inc-EMC Div

CBL 4POS RCPT RA TO PLUG 3.28'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XS2WD423C81F

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle, Right Angle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Type	Round
Color	Gray
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

XS2W Series

Part	2nd Connector Number of Positions	Cable Type	2nd Connector Shell Size - Insert	1st Connector Orientation [custom]	Cable Material	1st Connector Number of Positions	1st Connector Mounting Type	2nd Connector Mounting Type	1st Connector Shell Size - Insert	1st Connector Type	Assembly Configuration	2nd Connector Gender	Shielding	2nd Connector Type	Color	Usage	1st Connector Gender	1st Connector Number of Positions Loaded	Ingress Protection	2nd Connector Number of Positions Loaded	Length [x]	Length [x]
Omron Electronics Inc-EMC Div XS2W-M12PVC5SS5M
Omron Electronics Inc-EMC Div XS2WM12PVC4SS10M	4	Round	M12	Keyed	Polyvinyl Chloride (PVC)	4	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Receptacle	Standard	Female Sockets	Unshielded	Plug	Black	Industrial Environments	Male Pins	All	IP67 - Dust Tight Waterproof	All
Omron Electronics Inc-EMC Div XS2W-D421-K81-F
Omron Electronics Inc-EMC Div XS2W-M12PVC4SA1M	4	Round	M12	Keyed	Polyvinyl Chloride (PVC)	4	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Receptacle Right Angle	Standard	Female Sockets	Unshielded	Plug	Black	Industrial Environments	Male Pins	All	IP67 - Dust Tight Waterproof	All	1 m	3.28 ft
Omron Electronics Inc-EMC Div XS2WD423C81F	4	Round	M12	Keyed		4	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Receptacle Right Angle	Standard	Female Sockets	Unshielded	Plug	Gray	Industrial Environments	Male Pins	All	IP67 - Dust Tight Waterproof	All	1 m	3.28 ft
Omron Electronics Inc-EMC Div XS2WD422G81F	4	Round	M12	Keyed		4	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Receptacle Right Angle	Standard	Female Sockets	Unshielded	Plug Right Angle	Gray	Industrial Environments	Male Pins	All	IP67 - Dust Tight Waterproof	All
Omron Electronics Inc-EMC Div XS2W-D421-D81-A	4	Round	M12	Keyed		4	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Receptacle	Standard	Female Sockets	Unshielded	Plug	Gray	Industrial Environments	Male Pins	All	IP67 - Dust Tight Waterproof	All	2 m	6.56 ft
Omron Electronics Inc-EMC Div XS2W-D421-E81-T	4	Round	M12	Keyed		4	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Receptacle	Standard	Female Sockets	Unshielded	Plug	Gray	Industrial Environments	Male Pins	All	IP67 - Dust Tight Waterproof	All	3 m	9.84 ft
Omron Electronics Inc-EMC Div XS2W-D421-B81-T	4	Round	M12	Keyed		4	Free Hanging (In-Line)	Free Hanging (In-Line)	M12	Receptacle	Standard	Female Sockets	Unshielded	Plug	Gray	Industrial Environments	Male Pins	All	IP67 - Dust Tight Waterproof	All	500 mm	1.64 ft
Omron Electronics Inc-EMC Div XS2W-M12PUR5SS10M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 58.66

Description

General part information

XS2W Series

Circular Cable Assembly Unshielded 3.28' (1.00m)
