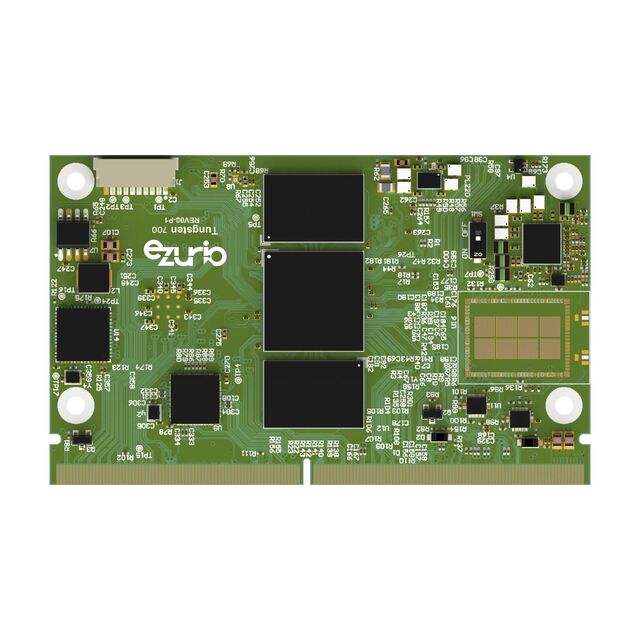

T700_SMARC_SOM_4R16E

Active

Ezurio LLC

SBC 2.2GHZ 2/6 CORE 8GB/0GB RAM

Search across all available documentation for this part.

Active

Ezurio LLC

SBC 2.2GHZ 2/6 CORE 8GB/0GB RAM

Technical Specifications

Parameters and characteristics for this part

Specification	T700_SMARC_SOM_4R16E

Core Processor	ARM® Cortex®-A78, ARM® Cortex®-A55
Ethernet	GbE (2)
Expansion Site/Bus	I2C, CAN, Wi-Fi/Bluetooth, UART, LVDS, GPIO, MIPI DSI, MIPI CSI, PCIe, Audio
Form Factor	SMARC2.1.1
Number of Cores	2/6
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	-
RAM Capacity/Installed	4 GB
Size / Dimension [x]	81.99 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50.01 mm
Speed	2.2 GHz
Speed	2 GHz
Storage Interface	eMMC, SPI
USB	USB 2.0 Host (4), USB 3.0 Host (2), USB 2.0 OTG (1)
Watchdog Timer	False

Part	USB	Expansion Site/Bus	Watchdog Timer	Form Factor	Speed	Speed	Core Processor	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ethernet	Storage Interface	RAM Capacity/Installed	RAM Capacity/Installed	Operating Temperature [Max]	Operating Temperature [Min]	Number of Cores
Ezurio LLC T700_SMARC_SOM_4R16E	USB 2.0 Host (4) USB 2.0 OTG (1) USB 3.0 Host (2)	Audio CAN GPIO I2C LVDS MIPI CSI MIPI DSI PCIe UART Wi-Fi/Bluetooth		SMARC2.1.1	2.2 GHz	2 GHz	ARM® Cortex®-A55 ARM® Cortex®-A78	1.969 in	81.99 mm	50.01 mm	3.228 in	GbE (2)	eMMC SPI	-	4 GB	70 °C	0 °C	2/6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	96	$ 178.46

General part information

Single Board Computer 2GHz, 2.2GHz 2/6 Core 4GB/- RAM ARM® Cortex®-A55, ARM® Cortex®-A78

Technical documentation and resources

No documents available
