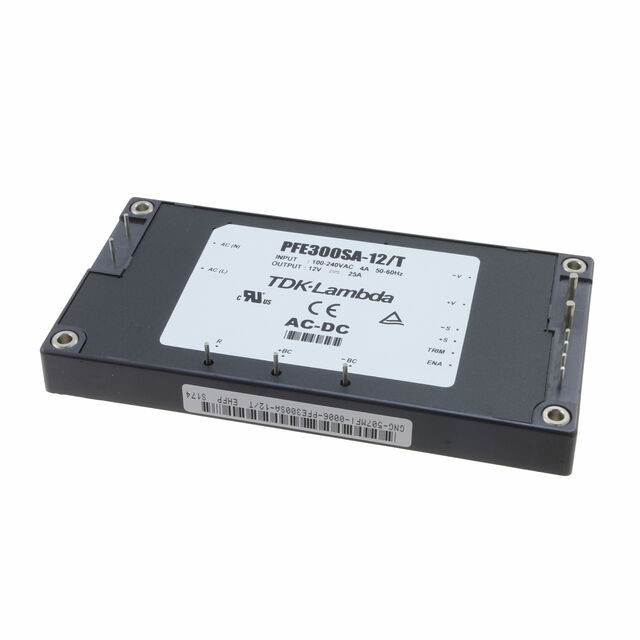

PFE300SA-12/T

Active

TDK-LAMBDA

AC/DC POWER SUPPLY SINGLE-OUT 12V 25A 300W 11-PIN

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC POWER SUPPLY SINGLE-OUT 12V 25A 300W 11-PIN

Technical Specifications

Parameters and characteristics for this part

Part	Load Regulation	Efficiency	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Type	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Line Regulation	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Weight	Weight	Voltage - Output 1	Number of Outputs	Applications
TDK-LAMBDA PFE300SA-12/T	48 mV	85 %	11-DIP Module Full Brick	85 VAC	265 VAC	Enclosed	300 W	25 A	Through Hole	CE CSA UL	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	48 mV	-40 °C	100 °C	60950-1 62368-1	200.03 g	0.441 lb	12 V	1	ITE (Commercial)
TDK-LAMBDA PFE300SA-48	96 mV	90 %	11-DIP Module Full Brick	85 VAC	265 VAC	Enclosed	302 W	6.3 A	Through Hole	CE CSA UL	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	96 mV	-40 °C	100 °C	60950-1 62368-1	200.03 g	0.441 lb	48 V	1	ITE (Commercial)
TDK-LAMBDA PFE300SA-12	48 mV	85 %	11-DIP Module Full Brick	85 VAC	265 VAC	Enclosed	300 W	25 A	Through Hole	CE CSA UL	0.5 in	4.6 "	116.8 mm	12.7 mm	2.4 "	61 mm	48 mV	-40 °C	100 °C	60950-1 62368-1	200.03 g	0.441 lb	12 V	1	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 25A 85 ~ 265 VAC Input
