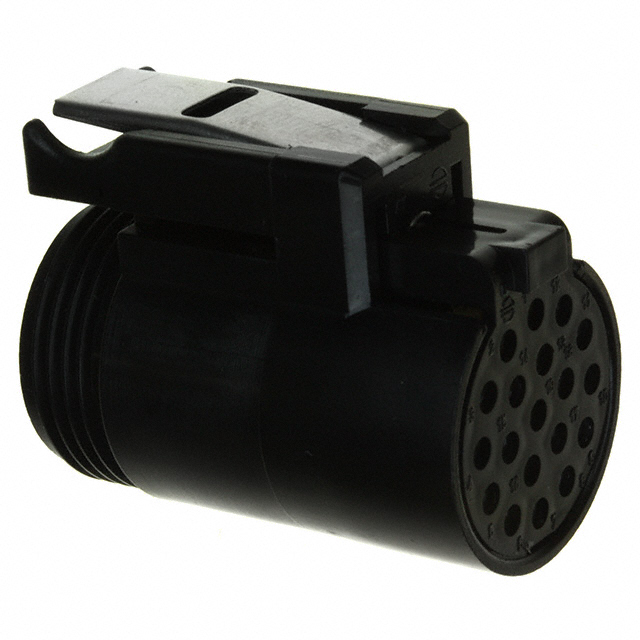

MBG19P-11

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 19POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG MALE 19POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MBG19P-11

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Latch Lock
Housing Color	Black
Insert Material	Thermoplastic, Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material	Thermoplastic Polyester
Shell Size - Insert	19
Shielding	Unshielded
Type	For Male Pins

Part	Shielding	Contact Type	Material Flammability Rating	Connector Type	Contact Size	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Mounting Type	Shell Material	Shell Size - Insert	Housing Color	Insert Material	Fastening Type	Type	Note	Contact Shape
Souriau-Sunbank by Eaton MBG19P-11	Unshielded	Crimp	UL94 V-0	Plug Housing	16	-55 °C	125 °C	19	Free Hanging (In-Line)	Thermoplastic Polyester	19	Black	Thermoplastic Halogen Free	Latch Lock	For Male Pins	Contacts Not Included	Circular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

19 Position Circular Connector Plug Housing Free Hanging (In-Line)
