12053009

Active

Bopla Enclosures

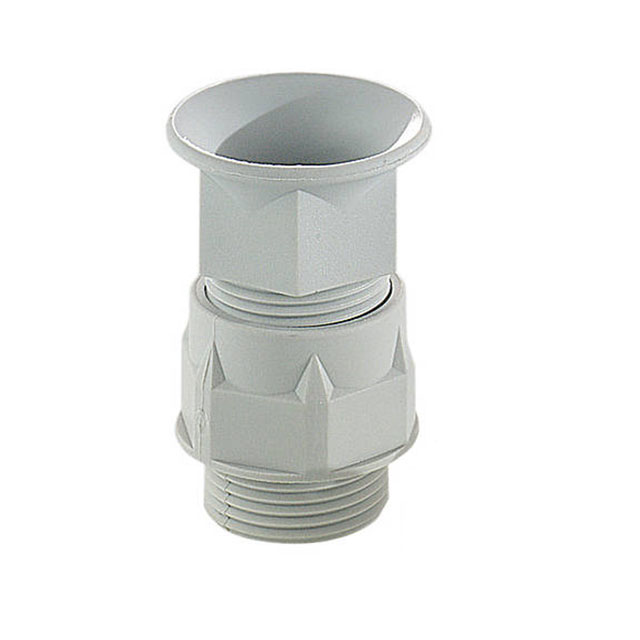

CABLE GLAND 12-14MM PG16

Search across all available documentation for this part.

Active

Bopla Enclosures

CABLE GLAND 12-14MM PG16

Technical Specifications

Parameters and characteristics for this part

Specification	12053009

Color	Gray
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Outside Cable Diameter (Max) [Max]	14 mm
Outside Cable Diameter (Max) [Max]	0.551 "
Outside Cable Diameter (Min) [Min] [diameter]	12 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.472 in
Thread Length	10 mm
Thread Length	0.394 in
Thread Size	PG16
Type	Cable Gland

Part	Material	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Thread Length	Thread Length	Thread Size	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]
Bopla Enclosures 12053009	Polyamide (PA) Nylon	14 mm	0.551 "	12 mm	0.472 in	Cable Gland	100 °C	-30 ░C	Gray	10 mm	0.394 in	PG16	IP65 - Dust Tight Water Resistant
Bopla Enclosures 12053109	Polyamide (PA) Nylon			14 mm	0.551 in	Cable Gland	100 °C	-20 C	Gray	11 mm	0.433 in	PG21	IP65 - Dust Tight Water Resistant	0.709 in	18.01 mm
Bopla Enclosures 12053209	Polyamide (PA) Nylon	24 mm	0.945 in	18.01 mm	0.709 in	Cable Gland	100 °C	-20 C	Gray	11 mm	0.433 in	PG29	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 2.99

General part information

Cable Gland Polyamide (PA), Nylon PG16 Gray
