12146A2V

Active

APEM

SWITCH TOGGLE DPDT 4A 125V

Search across all available documentation for this part.

Active

APEM

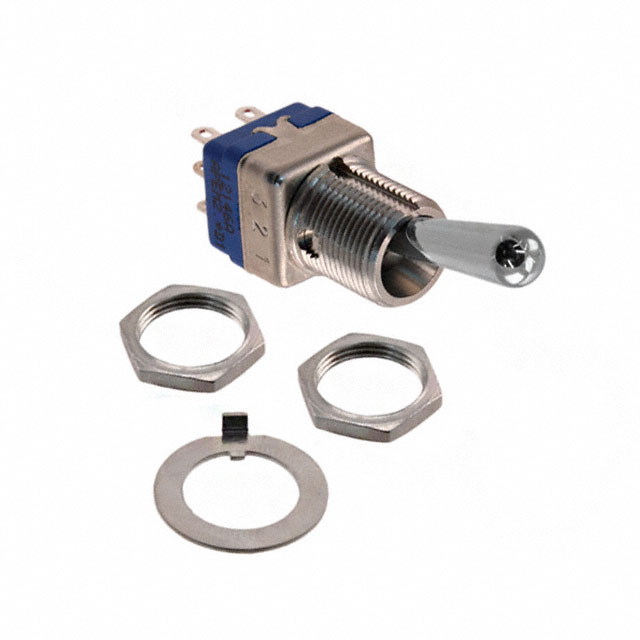

SWITCH TOGGLE DPDT 4A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	12146A2V

Actuator Length [x]	19.4 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	4 A
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Length [x]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Bushing Thread	Voltage Rating - AC	Termination Style	Panel Cutout Dimensions [diameter]	Switch Function	Actuator Material	Illumination	Electrical Life	Current Rating (Amps)	Features	Voltage Rating - DC
APEM 12146AGK	17.3 mm	DPDT	85 °C	-40 °C	Standard Round	15/32-32	125 V	Solder Lug	12 mm	On-On	Brass Nickel Plated	Non-Illuminated	50000 Cycles	4 A	Epoxy Sealed Terminals Front Panel Sealing	30 V
APEM 12146A2V	19.4 mm	DPDT	85 °C	-40 °C	Locking Lever	15/32-32	125 V	Solder Lug	12.5 mm	On-On	Brass Nickel Plated	Non-Illuminated	50000 Cycles	4 A	Epoxy Sealed Terminals	30 V
APEM 12146AD2G-X408	17.3 mm	DPDT	85 °C	-40 °C	Standard Round	15/32-32		Solder Lug	12 mm	On-On	Brass Nickel Plated	Non-Illuminated	20000 Steps	4 A	Epoxy Sealed Terminals Front Panel Sealing	30 V
APEM 12146AD2G12X408	11.8 mm	DPDT	85 °C	-40 °C	Standard Round	15/32-32	125 V	Solder Lug	12 mm	On-On	Brass Nickel Plated	Non-Illuminated	20000 Steps	4 A	Front Panel Sealing	30 V
APEM 12146AG2VX408	17.3 mm	DPDT	85 °C	-40 °C	Standard Round	15/32-32	125 V	Solder Lug	12 mm	On-On	Brass Nickel Plated	Non-Illuminated	50000 Cycles	4 A	Front Panel Sealing	30 V
