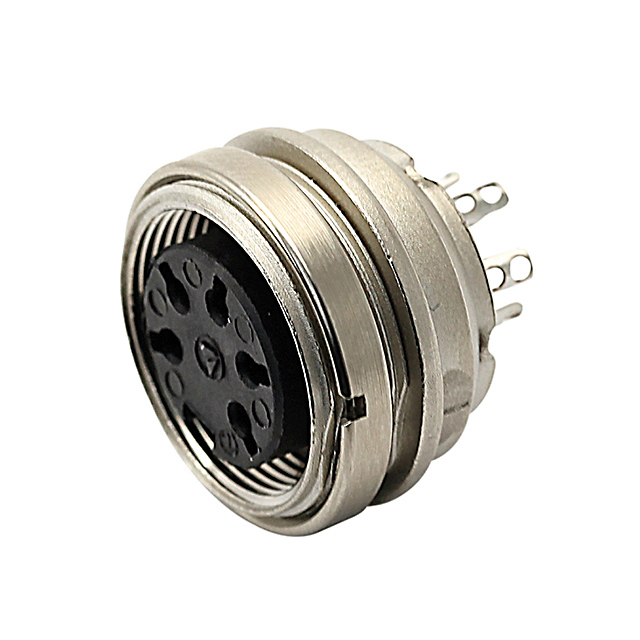

T 3363 150

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 5POS PNL MT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet C091 A,B,D Series Catalog

T 3363 150

Active

Amphenol Tuchel Industrial

CONN RCPT HSNG FMALE 5POS PNL MT

Deep-Dive with AI

DocumentsDatasheet C091 A,B,D Series Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T 3363 150

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Housing Color	Silver
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-5
Shielding	Shielded
Type	For Female Sockets

T 3363 Series

Part	Ingress Protection	Shielding	Orientation	Contact Size	Contact Type	Contact Shape	Mounting Feature	Insert Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Connector Type	Shell Material	Housing Color	Note	Type	Shell Size - Insert	Primary Material	Voltage Rating	Color	Current Rating (Amps)	Contact Finish - Mating	Termination	Mounting Type
Amphenol Tuchel Industrial T 3363 150	IP40	Shielded	Keyed	1.5 mm	Crimp	Circular	Bulkhead - Front Side Nut	Thermoplastic	UL94 V-0	100 °C	-40 °C	Nickel	Receptacle Housing	Die Cast	Silver	Contacts Not Included	For Female Sockets	M16-5
Amphenol Tuchel Industrial T 3363 109	IP40	Shielded	Keyed				Bulkhead - Front Side Nut			100 °C	-40 °C	Nickel	Receptacle Female Sockets	Die Cast				M16-5	Metal	250 VDC	Silver	7 A	Silver
Amphenol Tuchel Industrial T 3363 018	IP40	Shielded	Keyed							100 °C	-40 °C	Nickel	Receptacle Female Sockets	Die Cast				M16-5	Metal	250 VDC	Silver	7 A	Gold
Amphenol Tuchel Industrial T 3363 320	IP40	Shielded	Keyed							100 °C	-40 °C	Nickel	Receptacle Female Sockets	Die Cast				M16-5	Metal	250 VDC	Silver	7 A	Silver	Solder	Panel Mount Through Hole
Amphenol Tuchel Industrial T 3363 434	IP40	Shielded	Keyed							100 °C	-40 °C	Nickel	Receptacle Female Sockets	Die Cast				M16-5	Metal	250 VDC	Silver	7 A	Gold	Solder	Panel Mount Through Hole
Amphenol Tuchel Industrial T 3363 430	IP40	Shielded	Keyed							100 °C	-40 °C	Nickel	Receptacle Female Sockets	Die Cast				M16-5	Metal	250 VDC	Silver	7 A	Silver	Solder	Panel Mount Through Hole
Amphenol Tuchel Industrial T 3363 550	IP40	Shielded	Keyed	1.5 mm	Crimp	Circular	Bulkhead - Rear Side Nut	Thermoplastic	UL94 V-0	100 °C	-40 °C	Nickel	Receptacle Housing	Die Cast	Silver	Contacts Not Included	For Female Sockets	M16-5
Amphenol Tuchel Industrial T 3363 420	IP40	Shielded	Keyed							100 °C	-40 °C	Nickel	Receptacle Female Sockets	Die Cast				M16-5	Metal	250 VDC	Silver	7 A	Silver	Solder	Panel Mount Through Hole
Amphenol Tuchel Industrial T 3363 300	IP40	Shielded	Keyed							100 °C	-40 °C	Nickel	Receptacle Female Sockets	Die Cast				M16-5	Metal	250 VDC	Silver	7 A	Silver	Solder	Panel Mount Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.08
		10	$ 3.71
		25	$ 3.51
		50	$ 3.43
		100	$ 3.27
		300	$ 2.88

Description

General part information

T 3363 Series

5 Position Circular Connector Receptacle Housing Panel Mount
