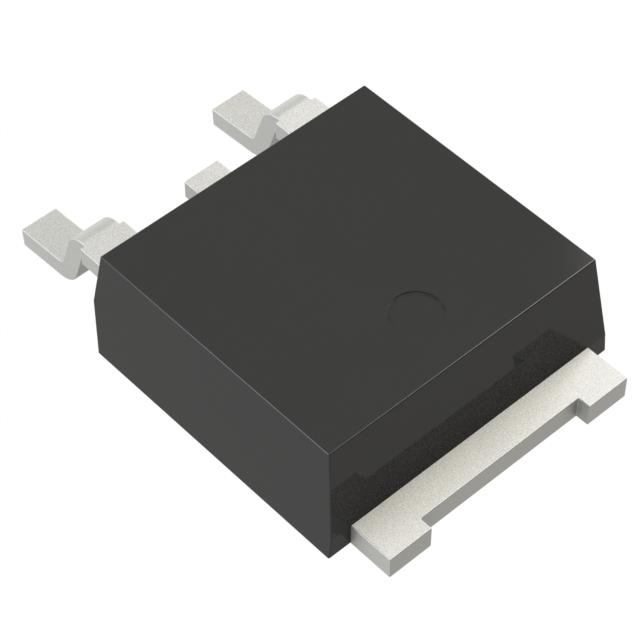

VS-15EVL06-M3/I
ActiveVishay General Semiconductor - Diodes Division
DIODE STANDARD 600V 15A SLIMDPAK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VS-15EVL06-M3/I
ActiveVishay General Semiconductor - Diodes Division
DIODE STANDARD 600V 15A SLIMDPAK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-15EVL06-M3/I |
|---|---|
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 ░C |
| Operating Temperature - Junction [Min] | -55 C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Reverse Recovery Time (trr) | 60 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | SlimDPAK |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 600 V |
| Voltage - Forward (Vf) (Max) @ If | 1.35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.37 | |
| 10 | $ 0.92 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.53 | |||
| 2000 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 1.37 | ||
| 10 | $ 0.92 | |||
| 100 | $ 0.74 | |||
| 500 | $ 0.59 | |||
| 1000 | $ 0.53 | |||
| 2000 | $ 0.48 | |||
| Tape & Reel (TR) | 4500 | $ 0.44 | ||
| 9000 | $ 0.43 | |||
Description
General part information
15EVL06 Series
Diode 600 V 15A Surface Mount SlimDPAK
