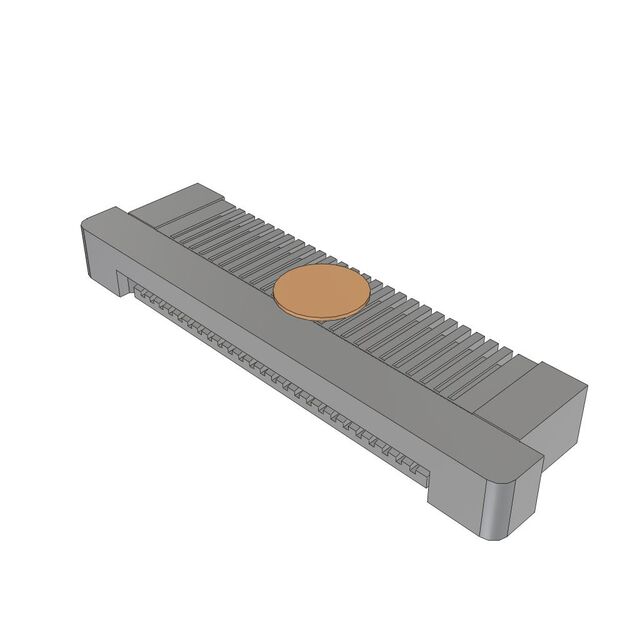

ZF5S-25-01-T-WT-K-TR

Active

Samtec Inc.

CONN FFC BOTTOM 25POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZero Insertion Force Connector for FFC, 0.50 mm (.0197") Pitch ZF5S Datasheet +1

ZF5S-25-01-T-WT-K-TR

Active

Samtec Inc.

CONN FFC BOTTOM 25POS 0.5MM R/A

Deep-Dive with AI

DocumentsZero Insertion Force Connector for FFC, 0.50 mm (.0197") Pitch ZF5S Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZF5S-25-01-T-WT-K-TR

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP)
Cable End Type	Straight
Connector/Contact Type	Contacts, Bottom
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	1.8 A
Features	Pick and Place Cap, Solder Retention, Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC
Height Above Board	2.1 mm
Height Above Board	0.083 "
Housing Color	Natural
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Mounting Type	Surface Mount, Right Angle
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder

ZF5S-25 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Actuator Color	Housing Material	Actuator Material	Current Rating (Amps)	Locking Feature	Features	Contact Finish	Connector/Contact Type	Termination	Flat Flex Type	Contact Material	FFC, FCB Thickness	Cable End Type	Mounting Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board
Samtec Inc. ZF5S-25-01-T-WT-K	105 ░C	-55 °C	Natural	Black	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Pick and Place Cap Solder Retention Zero Insertion Force (ZIF)	Tin	Contacts Bottom	Solder	FFC	Phosphor Bronze	0.3 mm	Straight	Surface Mount Right Angle	0.5 mm	0.02 in	2.1 mm	0.083 "
Samtec Inc. ZF5S-25-01-T-WT-K-TR	105 ░C	-55 °C	Natural	Black	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Pick and Place Cap Solder Retention Zero Insertion Force (ZIF)	Tin	Contacts Bottom	Solder	FFC	Phosphor Bronze	0.3 mm	Straight	Surface Mount Right Angle	0.5 mm	0.02 in	2.1 mm	0.083 "
Samtec Inc. ZF5S-25-02-T-WT-K-TR	105 ░C	-55 °C	Natural	Black	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Pick and Place Cap Solder Retention Zero Insertion Force (ZIF)	Tin	Contacts Top	Solder	FFC	Phosphor Bronze	0.3 mm	Straight	Surface Mount Right Angle	0.5 mm	0.02 in	2.1 mm	0.083 "
Samtec Inc. ZF5S-25-03-T-WT-TR	105 ░C	-55 °C	Natural	Black	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Tin	Contacts Vertical - 1 Sided	Solder	FFC	Phosphor Bronze	0.3 mm	Straight	Surface Mount	0.5 mm	0.02 in	4.87 mm	0.192 in
Samtec Inc. ZF5S-25-01-T-WT-TR	105 ░C	-55 °C	Natural	Black	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Tin	Contacts Bottom	Solder	FFC	Phosphor Bronze	0.3 mm	Straight	Surface Mount Right Angle	0.5 mm	0.02 in	2.1 mm	0.083 "
Samtec Inc. ZF5S-25-02-T-WT	105 ░C	-55 °C	Natural	Black	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	1.8 A	Slide Lock	Solder Retention Zero Insertion Force (ZIF)	Tin	Contacts Top	Solder	FFC	Phosphor Bronze	0.3 mm	Straight	Surface Mount Right Angle	0.5 mm	0.02 in	2.1 mm	0.083 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.05
		50	$ 2.49
		100	$ 2.11
		500	$ 1.88
	Digi-Reel®	1	$ 3.05
		50	$ 2.49
		100	$ 2.11
		500	$ 1.88
	Tape & Reel (TR)	1700	$ 1.46
		3400	$ 1.32
		5100	$ 1.25

Description

General part information

ZF5S-25 Series

25 Position FFC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
