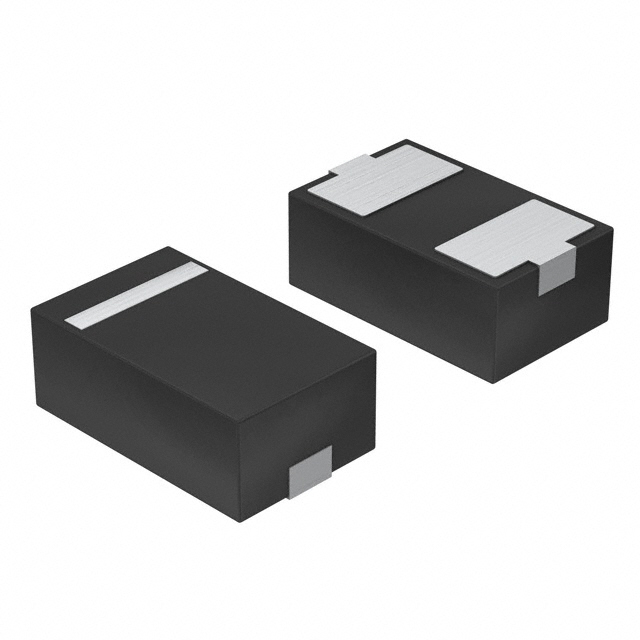

VESD05A1B-HD1-GS08

Active

Vishay General Semiconductor - Diodes Division

TVS DIODE 5VWM 11VC LLP1006-2L

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VESD05A1B-HD1-GS08

Active

Vishay General Semiconductor - Diodes Division

TVS DIODE 5VWM 11VC LLP1006-2L

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VESD05A1B-HD1-GS08

Applications	General Purpose
Capacitance @ Frequency	19 pF
Current - Peak Pulse (10/1000µs)	3 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	SOD-882
Power - Peak Pulse	33 W
Power Line Protection	False
Supplier Device Package	LLP1006-2L
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	11 V
Voltage - Reverse Standoff (Typ)	5 V

VESD05 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Supplier Device Package	Capacitance @ Frequency	Applications	Current - Peak Pulse (10/1000µs)	Voltage - Clamping (Max) @ Ipp	Power - Peak Pulse	Voltage - Breakdown (Min) [Min]	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Type	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ) [Min]	Grade	Qualification	Bidirectional Channels [custom]
Vishay General Semiconductor - Diodes Division VESD05-02V-G-08	-40 °C	125 ¯C	Surface Mount	SC-79 SOD-523	SOD-523	55 pF	General Purpose	6 A	20 V	120 W	6.5 V	5 V	1	Zener
Vishay General Semiconductor - Diodes Division VESD05A1-02V-GS08	-40 °C	125 ¯C	Surface Mount	SC-79 SOD-523	SOD-523	130 pF	General Purpose	16 A	12 V	192 W	6 V	5 V	1	Zener
Vishay General Semiconductor - Diodes Division VESD05A1B-HD1-GS08	-40 °C	125 ¯C	Surface Mount	SOD-882	LLP1006-2L	19 pF	General Purpose	3 A		33 W	6 V	5 V	1	Zener	11 V
Vishay General Semiconductor - Diodes Division VESD05A1B-02V-G-08	-40 °C	125 ¯C	Surface Mount	SC-79 SOD-523	SOD-523	19 pF	General Purpose	3 A		33 W	6 V	5 V	1	Zener	11 V
Vishay General Semiconductor - Diodes Division VESD05C1-HD1-G3-08	-55 °C	150 °C	Surface Mount	0402 (1006 Metric)	DFN1006-2A	67 pF	General Purpose	8.7 A		100 W	7.1 V	5 V	1	Zener
Vishay General Semiconductor - Diodes Division VESD05A8C-HNH-GS08	-40 °C	125 ¯C	Surface Mount	8-UFDFN Exposed Pad	LLP1713-9L	10 pF	General Purpose	2.5 A		33 W	6 V		8	Zener	13 V	5 V
Vishay General Semiconductor - Diodes Division VESD05B1-02VHG3-08	-55 °C	150 °C	Surface Mount	SC-79 SOD-523	SOD-523	23 pF		3.5 A		40 W	6 V	5 V	1	Zener	9.5 V		Automotive	AEC-Q101
Vishay General Semiconductor - Diodes Division VESD05C-FC1-GS08	-55 °C	150 °C	Surface Mount	4-UFBGA FCBGA	1005 FlipChip	75 pF	General Purpose	10 A	12 V	120 W	6 V	5 V		Zener					1
Vishay General Semiconductor - Diodes Division VESD05A8B-HNH-GS08	-40 °C	125 ¯C	Surface Mount	8-UFDFN Exposed Pad	LLP1713-9L	20 pF	General Purpose	4 A		52 W	6 V	5 V	8	Zener	13 V
Vishay General Semiconductor - Diodes Division VESD05A1-02V-G3-08	-55 °C	150 °C	Surface Mount	SC-79 SOD-523	SOD-523	130 pF		16 A	12 V	192 W	6 V	5 V	1	Zener			Automotive	AEC-Q101

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.37
		10	$ 0.26
		100	$ 0.13
		500	$ 0.12
		1000	$ 0.09
		2000	$ 0.08
	Digi-Reel®	1	$ 0.37
		10	$ 0.26
		100	$ 0.13
		500	$ 0.12
		1000	$ 0.09
		2000	$ 0.08
	Tape & Reel (TR)	8000	$ 0.08
		16000	$ 0.07
		24000	$ 0.07
		56000	$ 0.06

Description

General part information

VESD05 Series

11V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount LLP1006-2L
