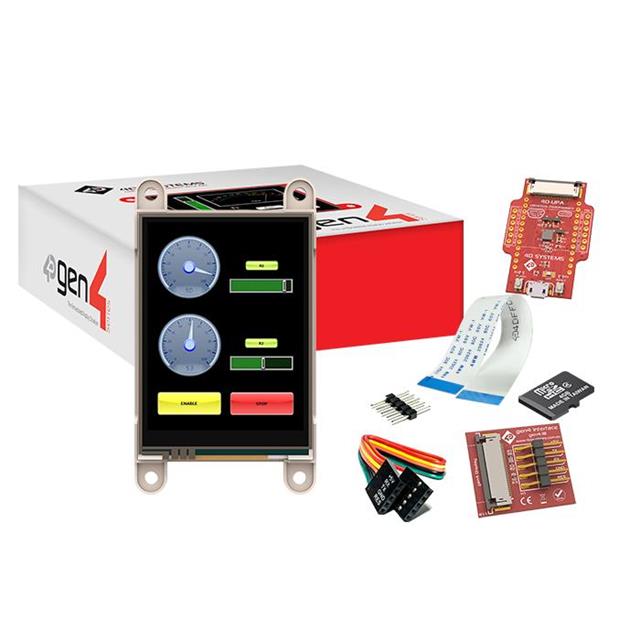

SK-GEN4-24DT

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 2.4"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsGEN4-IB Datasheet 4D-Display click Compatible Part Numbers

SK-GEN4-24DT

Active

4D Systems Pty Ltd

GRAPHIC DISPLAY TFT RGB 2.4"

Deep-Dive with AI

DocumentsGEN4-IB Datasheet 4D-Display click Compatible Part Numbers

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SK-GEN4-24DT

Backlight	LED - White
Diagonal Screen Size	60.96 mm
Diagonal Screen Size [custom]	2.4 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pitch [x]	0.15 mm
Dot Pitch [y]	0.15 mm
Dot Pixels [x]	240 pixels
Dot Pixels [y]	320
Graphics Color	Green, Red, Blue
Interface	SPI, I2C, TTL
Touchscreen	Resistive
Viewing Area [x]	36.7 mm
Viewing Area [y]	49 mm

SK-GEN4 Series

Part	Dot Pitch [y]	Dot Pitch [x]	Viewing Area [x]	Viewing Area [y]	Interface	Display Mode	Touchscreen	Diagonal Screen Size	Diagonal Screen Size	Backlight	Display Type	Graphics Color	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Diagonal Screen Size [custom]	Viewing Area [custom]	Viewing Area [custom]	Diagonal Screen Size [custom]	Viewing Area [z]
4D Systems Pty Ltd SK-GEN4-70DCT-CLB	0.18 mm	0.19 mm	154 mm	85.92 mm	Parallel/Serial	Transmissive	Capacitive	177.8 mm	7 in	LED - White	TFT - Color	Blue Green Red	WVGA	800	480
4D Systems Pty Ltd SK-GEN4-24DT	0.15 mm	0.15 mm	36.7 mm	49 mm	I2C SPI TTL	Transmissive	Resistive	60.96 mm		LED - White	TFT - Color	Blue Green Red		240 pixels	320	2.4 in
4D Systems Pty Ltd SK-GEN4-28PT-PI	0.18 mm	0.18 mm			I2C Parallel TTL	Transmissive	Resistive	71.12 mm	2.8 in	LED - White	TFT - Color	Blue Green Red		240 pixels	320		43.2 mm	57.6 mm
4D Systems Pty Ltd SK-GEN4-70D-CLB-SB	0.18 mm	0.19 mm	154 mm	85.92 mm	Parallel/Serial	Transmissive		177.8 mm	7 in	LED - White	TFT - Color	Blue Green Red	WVGA	800	480
4D Systems Pty Ltd SK-GEN4-24D-AR	0.15 mm	0.15 mm	36.7 mm	49 mm	I2C SPI TTL	Transmissive		60.96 mm		LED - White	TFT - Color	Blue Green Red		240 pixels	320	2.4 in
4D Systems Pty Ltd SK-GEN4-43D-CLB-PI	0.2 mm	0.2 mm	95.04 mm	53.86 mm	Parallel/Serial	Transmissive		109.22 mm	4.3 in	LED - White	TFT - Color	Blue Green Red		480	272
4D Systems Pty Ltd SK-GEN4-50DCT-CLB-AR			108 mm	64.8 mm	Parallel/Serial	Transmissive	Capacitive			LED - White	TFT - Color	Blue Green Red	WVGA	800	480	5 in			127 mm
4D Systems Pty Ltd SK-GEN4-32PT-AR	0.2 mm	0.2 mm		48.6 mm	I2C Parallel TTL	Transmissive	Resistive	81.28 mm	3.2 in	LED - White	TFT - Color	Blue Green Red		240 pixels	320					64.8 mm
4D Systems Pty Ltd SK-GEN4-32D-CLB	0.2 mm	0.2 mm		48.6 mm	Parallel/Serial	Transmissive		81.28 mm	3.2 in	LED - White	TFT - Color	Blue Green Red		240 pixels	320					64.8 mm
4D Systems Pty Ltd SK-GEN4-43DCT-CLB	0.2 mm	0.2 mm	95.04 mm	53.86 mm	I2C SPI TTL	Transmissive	Capacitive	109.22 mm	4.3 in	LED - White	TFT - Color	Blue Green Red		480	272

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 64.95
		10	$ 53.10

Description

General part information

SK-GEN4 Series

Resistive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color I2C, SPI, TTL 2.4" (60.96mm) 240 x 320
