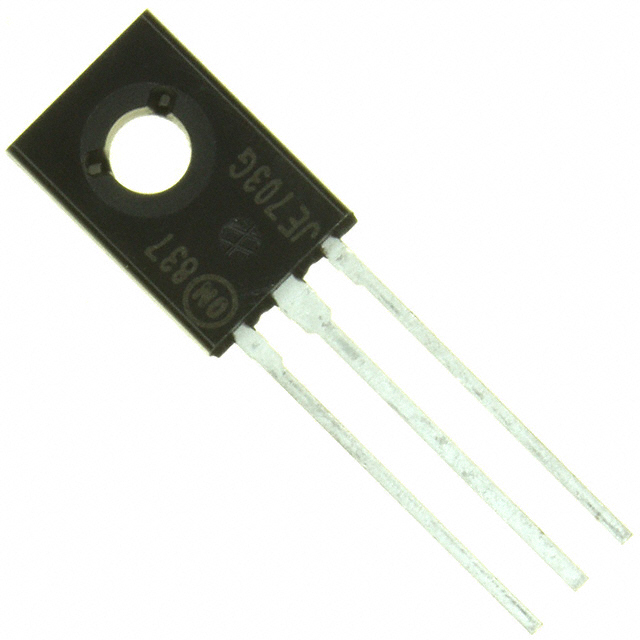

2SA1507T

Obsolete

ON Semiconductor

TRANS PNP 160V 1.5A TO126ML

Search across all available documentation for this part.

Obsolete

ON Semiconductor

TRANS PNP 160V 1.5A TO126ML

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1507T

Current - Collector (Ic) (Max) [Max]	1.5 A
Current - Collector Cutoff (Max) [Max]	1 µA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 hFE
Frequency - Transition	120 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	TO-225AA, TO-126-3
Power - Max [Max]	1.5 W
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	160 V

Part	Operating Temperature	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Current - Collector (Ic) (Max) [Max]	Transistor Type	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]
ON Semiconductor 2SA1507T	150 °C	1 µA	500 mV	TO-126-3 TO-225AA	1.5 W	160 V	Through Hole	1.5 A	PNP	120 MHz	200 hFE
ON Semiconductor 2SA1507S	150 °C	1 µA	500 mV	TO-126-3 TO-225AA	1.5 W	160 V	Through Hole	1.5 A	PNP	120 MHz		100 hFE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor PNP 160 V 1.5 A 120MHz 1.5 W Through Hole TO-126ML
