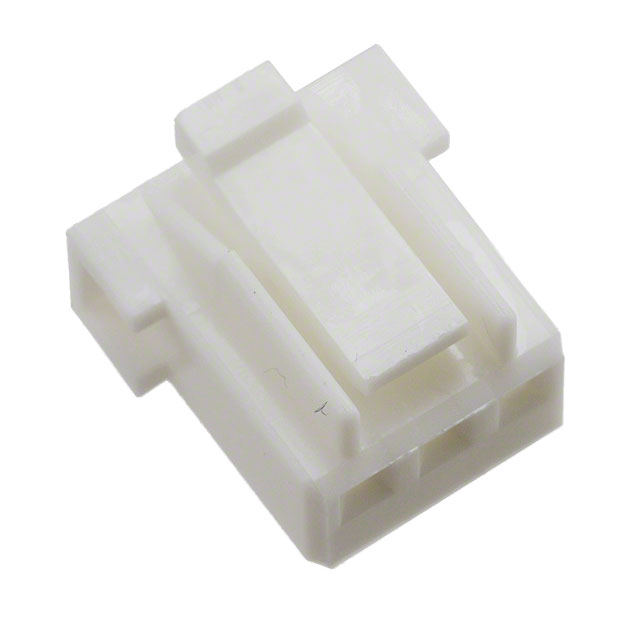

0351550300

Active

Molex

CONN RCPT HSG 3POS 2.50MM

Deep-Dive with AI

Search across all available documentation for this part.

0351550300

Active

Molex

CONN RCPT HSG 3POS 2.50MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0351550300

Color	Natural
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm

035155 Series

Part	Number of Rows	Note	Contact Termination	Fastening Type	Color	Pitch [x]	Pitch [x]	Contact Type	Mounting Type	Connector Type	Number of Positions	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0351550204	1	Contacts Not Included	Crimp	Latch Lock	Blue	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle	2
Molex 0351550700	1	Contacts Not Included	Crimp	Latch Lock	Natural	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle	7	Polybutylene Terephthalate (PBT)	-40 °C	105 ░C
Molex 0351550903	1	Contacts Not Included	Crimp	Latch Lock	Yellow	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle	9
Molex 0351550300	1	Contacts Not Included	Crimp	Latch Lock	Natural	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle		Polybutylene Terephthalate (PBT)	-40 °C	105 ░C
Molex 0351550704	1	Contacts Not Included	Crimp	Latch Lock	Blue	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle	7
Molex 0351550703	1	Contacts Not Included	Crimp	Latch Lock	Yellow	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle	7
Molex 0351550303	1	Contacts Not Included	Crimp	Latch Lock	Yellow	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle
Molex 0351551202	1	Contacts Not Included	Crimp	Latch Lock	Red	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle	12
Molex 0351550800	1	Contacts Not Included	Crimp	Latch Lock	Natural	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle	8	Polyester	-40 °C	105 ░C
Molex 0351550702	1	Contacts Not Included	Crimp	Latch Lock	Red	0.098 in	2.5 mm	Female Socket	Free Hanging (In-Line)	Receptacle	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.20
		10	$ 0.16
		100	$ 0.11
		1000	$ 0.09
		3000	$ 0.09

Description

General part information

035155 Series

3 Rectangular Connectors - Housings Receptacle Natural 0.098" (2.50mm)

Documents

Technical documentation and resources

No documents available
