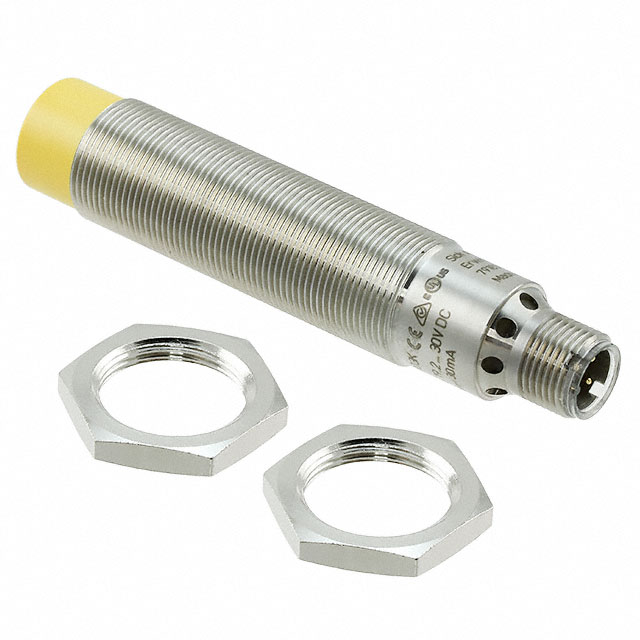

6027391

Active

SICK, Inc.

INTERLOCK INDUCTIVE PROX 3-6MM

Search across all available documentation for this part.

Active

SICK, Inc.

INTERLOCK INDUCTIVE PROX 3-6MM

Technical Specifications

Parameters and characteristics for this part

Specification	6027391

Actuator Type	Non-Contact
Approval Agency	cULus, CE
Ingress Protection	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Must Operate [Max]	6 mm
Must Operate [Min]	3 mm
Must Release	15 mm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Termination Style	Connector (M12)
Type	Inductive
Voltage - Supply	24 VDC

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate [Max]	Must Operate [Min]	Ingress Protection	Actuator Type	Voltage - Supply	Approval Agency	Must Release	Termination Style
SICK, Inc. 6027391	Inductive	70 °C	-25 °C	6 mm	3 mm	IP69K - Dust Tight High Temp Water Jets Waterproof	Non-Contact	24 VDC	CE cULus	15 mm	Connector (M12)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 238.00

General part information

INTERLOCK INDUCTIVE PROX 3-6MM

Technical documentation and resources
