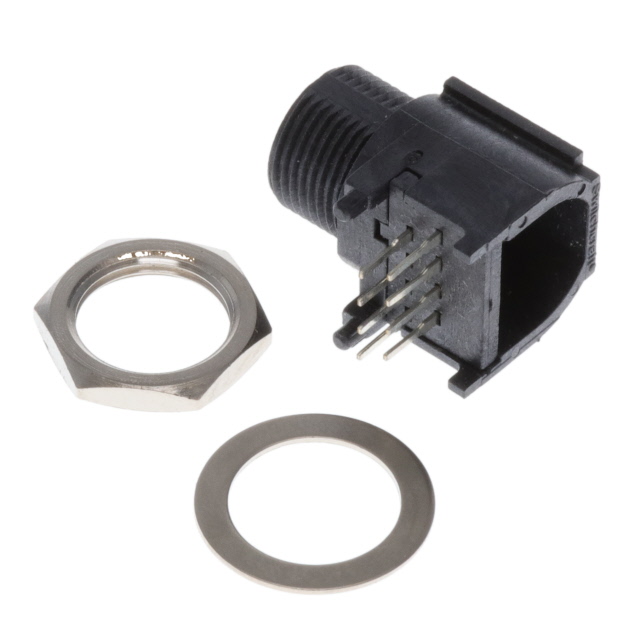

TRAPC8MX

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 8P SLDR

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE MINI XLR 8P SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	TRAPC8MX

Applications	Medical, Testing Equipment & Measurement, Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Material	Brass
Current Rating (Amps)	1.5 A
Fastening Type	Latch Lock
Features	Board Guide
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Orientation	Keyed
Primary Material	Plastic
Shell Size - Insert	Mini XLR
Termination	Solder

Part	Color	Contact Material	Current Rating (Amps)	Fastening Type	Applications	Primary Material	Number of Positions	Termination	Features	Insert Material	Mounting Feature	Mounting Type	Connector Type	Shell Size - Insert	Orientation
Switchcraft Inc. TRAPC8MX	Black	Brass	1.5 A	Latch Lock	Audio Medical Testing Equipment & Measurement	Plastic	8	Solder	Board Guide	Thermoplastic	Bulkhead - Front Side Nut	Through Hole Right Angle	Male Pins Receptacle	Mini XLR	Keyed
Switchcraft Inc. TRAPC8M1X	Black	Brass	1.5 A	Latch Lock	Audio Medical Testing Equipment & Measurement	Plastic	8	Solder	Board Guide	Thermoplastic		Through Hole Right Angle	Male Pins Receptacle	Mini XLR	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

8 Position Circular Connector Receptacle, Male Pins Solder
