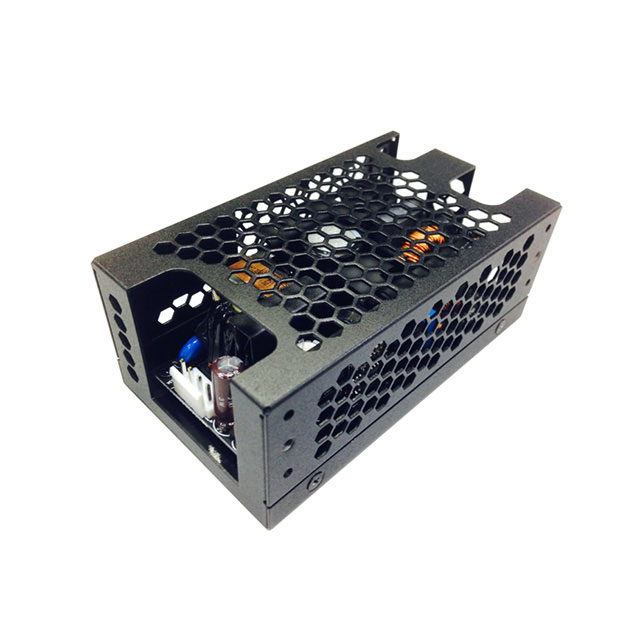

MDS-200ADB24 AA
ActiveDelta Electronics
250W/24V ENCLOSED POWER SUPPLY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDS-200ADB24 AA
ActiveDelta Electronics
250W/24V ENCLOSED POWER SUPPLY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDS-200ADB24 AA |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | TUV, UL, SIQ, CE, EN, CB Scheme |
| Current - Output 1 | 5 A |
| Efficiency | 93 % |
| Features | PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 200 W, 120 W |
| Size / Dimension [x] | 113.9 mm |
| Size / Dimension [x] | 4.48 in |
| Size / Dimension [y] | 64.7 mm |
| Size / Dimension [y] | 2.55 " |
| Size / Dimension [z] | 1.76 in |
| Size / Dimension [z] | 44.7 mm |
| Standard Number | 55011, 50581, 55032, 60950-1, 60601-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MDS-200 Series
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
