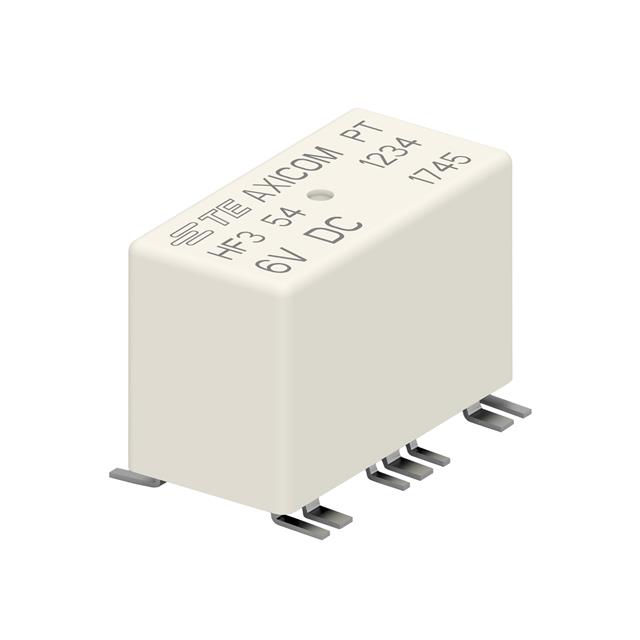

1-1462051-7

Active

TE Connectivity Potter & Brumfield Relays

RELAY RF SPDT 2A 6V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHF3 S Relay Datasheet Datasheet

1-1462051-7

Active

TE Connectivity Potter & Brumfield Relays

RELAY RF SPDT 2A 6V

Deep-Dive with AI

DocumentsHF3 S Relay Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1462051-7

Coil Current	23.3 mA
Coil Resistance	257 Ohms
Coil Type	Non Latching
Contact Form	SPDT (1 Form C)
Contact Material	Silver (Ag), Gold (Au)
Contact Rating (Current)	2 A
Mounting Type	Surface Mount
Must Operate Voltage	4.5 VDC
Must Release Voltage	0.6 VDC
Operate Time	5 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Release Time	5 ms
Switching Voltage	250 VAC, 220 VDC
Termination Style	Gull Wing

1462051 Series

Part	Operate Time	Release Time	Coil Current	Coil Type	Contact Rating (Current)	Contact Material	Must Release Voltage	Switching Voltage	Mounting Type	Coil Resistance	Termination Style	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Coil Voltage
TE Connectivity Potter & Brumfield Relays 1-1462051-7	5 ms	5 ms	23.3 mA	Non Latching	2 A	Gold (Au) Silver (Ag)	0.6 VDC	220 VDC 250 VAC	Surface Mount	257 Ohms	Gull Wing	SPDT (1 Form C)	85 °C	-55 °C	4.5 VDC
TE Connectivity Potter & Brumfield Relays 1-1462051-1	3 ms	2 ms	47 mA	Latching Dual Coil	2 A	Gold (Au) Silver (Ag)		220 VDC 250 VAC	Surface Mount	64 Ohms	Gull Wing	SPDT (1 Form C)	85 °C	-55 °C	2.25 VDC
TE Connectivity Potter & Brumfield Relays 1-1462051-2	3 ms	2 ms	28.1 mA	Latching Dual Coil	2 A	Gold (Au) Silver (Ag)		220 VDC 250 VAC	Surface Mount	178 Ohms	Gull Wing	SPDT (1 Form C)	85 °C	-55 °C	3.75 VDC	5 VDC
TE Connectivity Potter & Brumfield Relays 1-1462051-4	3 ms	2 ms	11.7 mA	Latching Dual Coil	2 A	Gold (Au) Silver (Ag)		220 VDC 250 VAC	Surface Mount	1030 Ohms	Gull Wing	SPDT (1 Form C)	85 °C	-55 °C	9 VDC	12 VDC
TE Connectivity Potter & Brumfield Relays 1462051-4	5 ms	4 ms	11.7 mA	Non Latching	2 A	Gold (Au) Silver (Ag)	1.2 VDC	220 VDC 250 VAC	Surface Mount	1030 Ohms	Gull Wing	SPDT (1 Form C)	85 °C	-55 °C	9 VDC	12 VDC
TE Connectivity Potter & Brumfield Relays 1462051-1	5 ms	4 ms	46.7 mA	Non Latching	2 A	Gold (Au) Silver (Ag)	0.3 VDC	220 VDC 250 VAC	Surface Mount	64 Ohms	Gull Wing	SPDT (1 Form C)	85 °C	-55 °C	2.25 VDC
TE Connectivity Potter & Brumfield Relays 2-1462051-6	5 ms	5 ms	11.7 mA	Latching Dual Coil	2 A	Gold (Au) Silver (Ag)		220 VDC 250 VAC	Surface Mount	1030 Ohms	Gull Wing	SPDT (1 Form C)	85 °C	-55 °C	9 VDC	12 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	400	$ 11.46

Description

General part information

1462051 Series

RELAY RF SPDT 2A 6V

Documents

Technical documentation and resources

HF3 S Relay Datasheet

Datasheet
