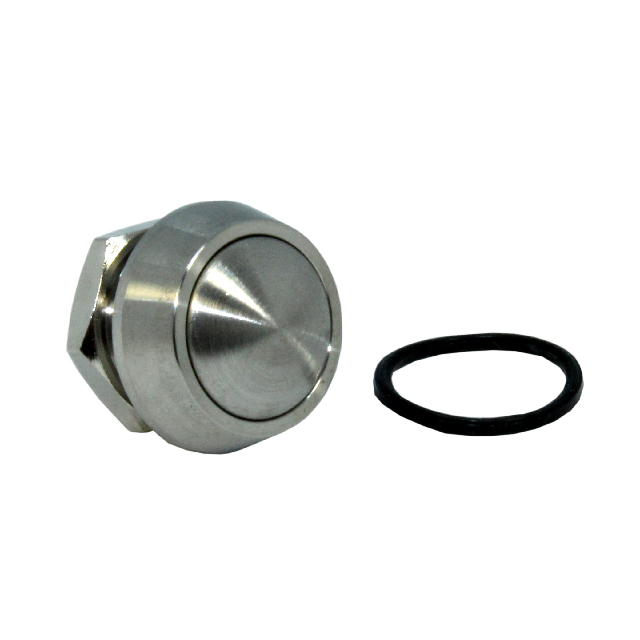

EH12NMSSBX

Active

CIT Relay and Switch

SWITCH PB SPST-NO 2A 48V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH PB SPST-NO 2A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	EH12NMSSBX

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	2 A
Electrical Life	200000 Cycles
Features	Stainless Steel
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - DC	48 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Type	Color - Actuator/Cap	Switch Function	Features	Voltage Rating - DC	Current Rating (Amps)	Actuator Type	Mounting Type	Circuit	Actuator Marking	Panel Cutout Dimensions [diameter]	Mechanical Life	Ingress Protection	Electrical Life
CIT Relay and Switch EH12NMSSBX	-20 C	70 °C	Solder Lug	Anti-Vandal	Silver	Off-Mom	Stainless Steel	48 V	2 A	Button Round	Panel Mount Front	SPST-NO	No Marking	12 mm	500000 Cycles	IP67 - Dust Tight Waterproof	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 6.09

General part information

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
