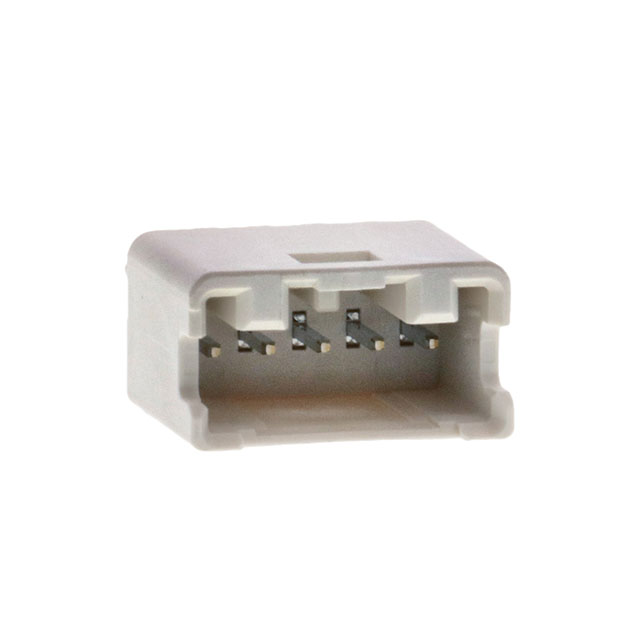

B05B-PNISK-1A

Active

JST Sales America Inc.

CONN HEADER VERT 5POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 5POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	B05B-PNISK-1A

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Lock
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.402 in
Insulation Height	10.2 mm
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	12.25 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	100 V

Part	Mounting Type	Insulation Material	Number of Rows	Fastening Type	Connector Type	Material Flammability Rating	Insulation Height	Insulation Height	Style	Voltage Rating	Shrouding	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Insulation Color	Mated Stacking Heights	Features	Termination	Contact Material	Contact Finish - Post	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Current Rating (Amps)
JST Sales America Inc. B05B-PNISK-1A	Through Hole	Polyamide (PA66) Nylon 6/6 Glass Filled	1	Latch Lock	Header	UL94 V-0	0.402 in	10.2 mm	Board to Cable/Wire	100 V	Shrouded - 4 Wall	0.079 in	2 mm	0.134 in	3.4 mm	Male Pin	Natural	12.25 mm	Board Guide	Press-Fit Solder	Copper Alloy	Tin	Square	-25 °C	85 °C	All	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 5 position 0.079" (2.00mm)
