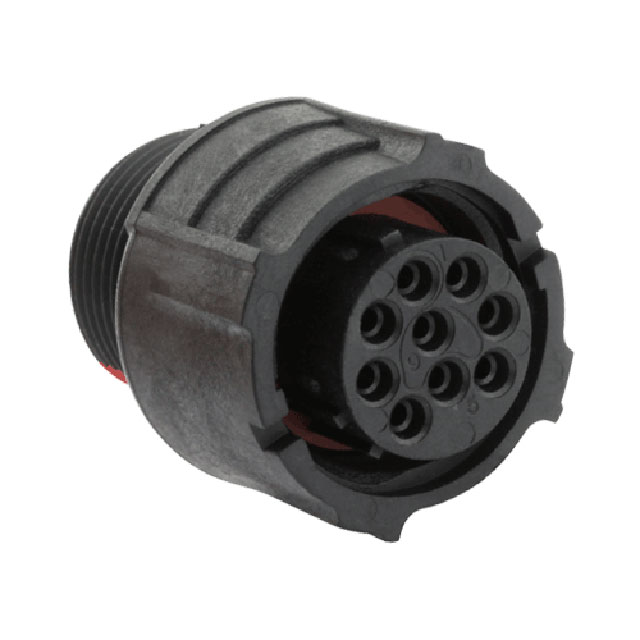

CL1F2100

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG FMALE 9POS INLINE

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN PLUG HSG FMALE 9POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	CL1F2100

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp and Solder Cup
Fastening Type	Twist Latch
Features	Coupling Nut
Housing Color	Black
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Thermoplastic, Halogen Free
Shielding	Unshielded
Type	For Female Sockets

Part	Contact Size	Contact Shape	Insert Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Type	Note	Contact Type	Number of Positions	Connector Type	Housing Color	Mounting Type	Shell Material	Material Flammability Rating	Orientation	Features	Shielding	Shell Size - Insert [Max]	Shell Size - Insert [Min]
Souriau-Sunbank by Eaton CL1F2100	16	Circular	Thermoplastic	Twist Latch	125 °C	-40 °C	IP40	For Female Sockets	Contacts Not Included	Crimp and Solder Cup	9	Plug Housing	Black	Free Hanging (In-Line)	Thermoplastic Halogen Free	UL94 V-0	Keyed	Coupling Nut	Unshielded
Souriau-Sunbank by Eaton CL1F2200	20	Circular	Thermoplastic	Twist Latch	125 °C	-40 °C	IP40	For Female Sockets	Contacts Not Included	Crimp and Solder Cup	14	Plug Housing	Black	Free Hanging (In-Line)	Thermoplastic Halogen Free	UL94 V-0	Keyed	Coupling Nut	Unshielded	2	2
Souriau-Sunbank by Eaton CL1F2203	20	Circular	Thermoplastic	Twist Latch	125 °C	-40 °C	IP68 - Dust Tight Waterproof	For Female Sockets	Contacts Not Included	Crimp and Solder Cup	14	Plug Housing	Black	Free Hanging (In-Line)	Thermoplastic Halogen Free	UL94 V-0	Keyed	Coupling Nut	Unshielded	2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 12.45

General part information

9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
