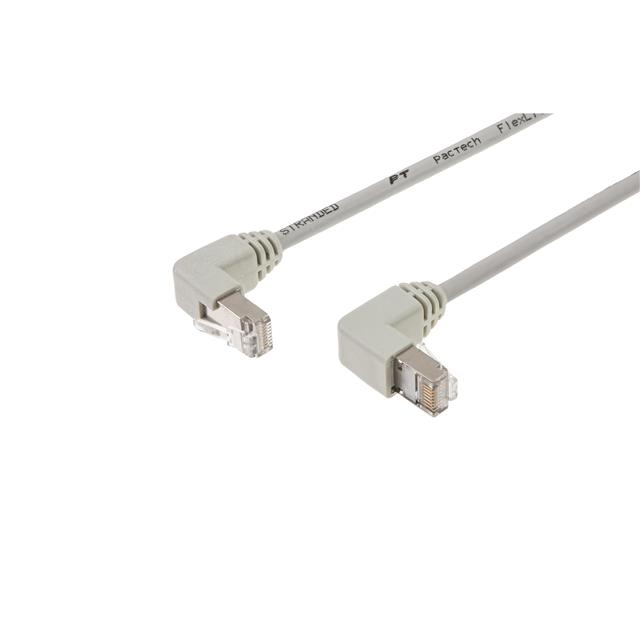

PN-S5GL-DNUP-10-F

Active

Pactech

C5E STP 26AWG LSZH 10' DN/UP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PN-S5GL-DNUP-10-F

Active

Pactech

C5E STP 26AWG LSZH 10' DN/UP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PN-S5GL-DNUP-10-F

Cable Type	Round LSZH Cable
Color	Gray
Connector Type	Angled Down, Angled Up to Plug, Plug
Features	5.3 mm
Features	Molded STP Connectors, 26AWG FUTP, LSZH Jacket
Length	10 ft
Length	3.05 m
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Shielded

PN-S5GL Series

Part	Connector Type	Length [x]	Length [x]	Color	Number of Positions/Contacts	Cable Type	Mounting Type	Features	Features	Shielding	Length	Length
Pactech PN-S5GL-STUP-02.5-F	Plug to Plug Angled Up	762 mm	30 "	Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket STP Connectors	Shielded
Pactech PN-S5GL-STUP-07-F	Plug to Plug Angled Up			Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket STP Connectors	Shielded	2.13 m	84 in
Pactech PN-S5GL-STDN-05-F	Plug to Plug Angled Down			Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket STP Connectors	Shielded	1.52 m	5 '
Pactech PN-S5GL-STDN-06-F	Plug to Plug Angled Down			Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket STP Connectors	Shielded	1.83 m	6 ft
Pactech PN-S5GL-STUP-04-F	Plug to Plug Angled Up	1.22 m	4 ft	Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket STP Connectors	Shielded
Pactech PN-S5GL-DNUP-10-F	Angled Down Angled Up to Plug Plug			Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket Molded STP Connectors	Shielded	3.05 m	10 ft
Pactech PN-S5GL-STUP-06-F	Plug to Plug Angled Up			Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket STP Connectors	Shielded	1.83 m	6 ft
Pactech PN-S5GL-STUP-09-F	Plug to Plug Angled Up			Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket STP Connectors	Shielded	2.74 m	9 '
Pactech PN-S5GL-STUP-03.5-F	Plug to Plug Angled Up			Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket STP Connectors	Shielded	1070 mm	42 "
Pactech PN-S5GL-STDN-02.5-F	Plug to Plug Angled Down	762 mm	30 "	Gray	8p8c (RJ45 Ethernet)	Round LSZH Cable	Free Hanging (In-Line)	5.3 mm	26AWG FUTP LSZH Jacket STP Connectors	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.99
		10	$ 43.64
		20	$ 42.74
		40	$ 41.39

Description

General part information

PN-S5GL Series

Modular Cable Plug, Angled Up to Plug, Angled Down 8p8c (RJ45, Ethernet) 10.00' (3.05m) Shielded

Documents

Technical documentation and resources
