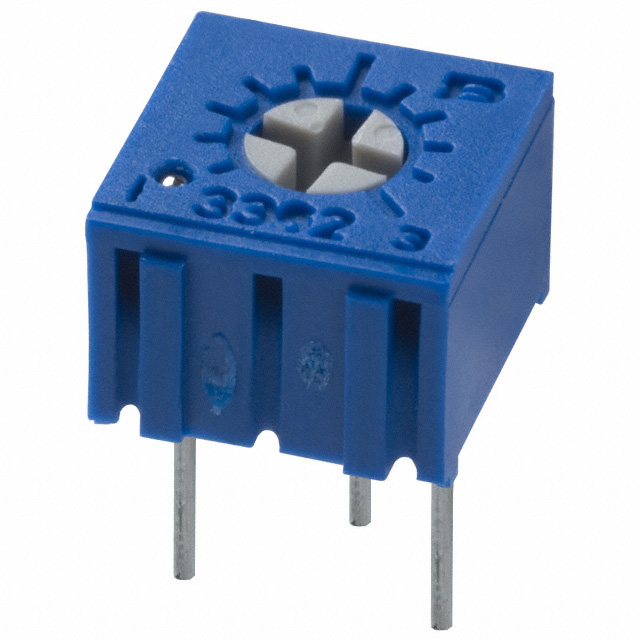

3362P-1-303
ActiveBourns Inc.
TRIMMER 30K OHM 0.5W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3362P-1-303
ActiveBourns Inc.
TRIMMER 30K OHM 0.5W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3362P-1-303 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.5 W |
| Power (Watts) | 0.5 W |
| Resistive Material | Cermet |
| Size / Dimension [x] | 0.275 in |
| Size / Dimension [x] | 6.99 mm |
| Size / Dimension [y] | 6.6 mm |
| Size / Dimension [y] | 0.26 " |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
3362P Series
| Part | Number of Turns | Tolerance | Resistive Material | Termination Style | Power (Watts) | Power (Watts) | Resistance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Temperature Coefficient | Mounting Type | Adjustment Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 2 kOhms | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Adjustment |
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 25 kOhms | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Adjustment |
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 100 kOhms | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Finger Adjustment |
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 50 kOhms | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Adjustment |
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Adjustment | |
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 250 kOhms | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Adjustment |
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 100 kOhms | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Adjustment |
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 10000 Ohms | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Adjustment |
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 50 Ohms | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Finger Adjustment |
Bourns Inc. | 1 | 10 % | Cermet | PC Pins | 0.5 W | 0.5 W | 2 MOhms | 6.6 mm | 0.275 in | 6.99 mm | 0.26 " | 100 ppm/°C | Through Hole | Top Adjustment |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2000 | $ 0.92 | |
Description
General part information
3362P Series
30 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 1 Turn Top Adjustment
