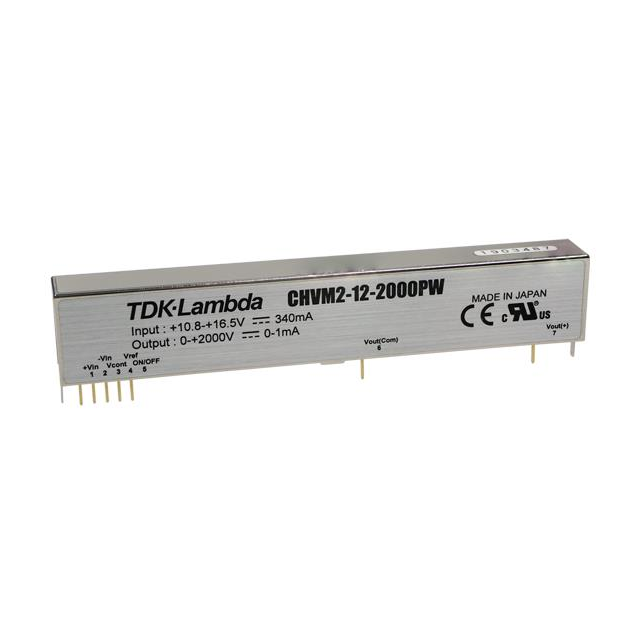

CHVM2-12-2000NW

Active

TDK-LAMBDA

HIGH VOLTAGE DC/DC CONVERTER, REGULATED, NEGATIVE OUTPUT, PROGRAMMABLE, 2 W, 1 MA, THROUGH HOLE

Search across all available documentation for this part.

Active

TDK-LAMBDA

HIGH VOLTAGE DC/DC CONVERTER, REGULATED, NEGATIVE OUTPUT, PROGRAMMABLE, 2 W, 1 MA, THROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	CHVM2-12-2000NW

Applications	ITE (Commercial)
Approval Agency	UL, CSA, CE
Control Features	Active Low, Enable
Current - Output (Max) [Max]	1 mA
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	2 W
Size / Dimension [x]	110 mm
Size / Dimension [x]	4.33 in
Size / Dimension [y]	0.47 "
Size / Dimension [y]	12 mm
Size / Dimension [z]	0.78 in
Size / Dimension [z]	19.8 mm
Standard Number	62368-1
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	16.5 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Output 1	-2000 V

Non-Isolated DC/DC Converters PCB 2W 12VDCin -2000Vout 1mA

Part	Power (Watts)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max) [Max]	Features	Control Features	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1	Standard Number	Applications	Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
TDK-LAMBDA CHVM2-12-2000NW	2 W	Through Hole	-10 °C	60 °C	CE CSA UL	1	110 mm	0.78 in	4.33 in	0.47 "	19.8 mm	12 mm	1 mA	Adjustable Output Remote On/Off Remote Sense	Active Low Enable	16.5 V	10.8 V	-2000 V	62368-1	ITE (Commercial)	Non-Isolated PoL Module
TDK-LAMBDA CHVM1R5-12-1000P	1.5 W	Through Hole			CE CSA UL	1	44 mm	1.18 in	1.73 in	0.63 in	30 mm	16 mm	1.5 mA	Adjustable Output Remote On/Off Remote Sense	Active High Enable	13 V	11 V	1000 V	62368-1	ITE (Commercial)	Non-Isolated PoL Module	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 325.32
		10	$ 312.81
Newark	Each	1	$ 325.32
		10	$ 312.81
Sager	N/A	1	$ 325.32
		10	$ 312.81

General part information

Non-Isolated DC/DC Converters PCB 2W 12VDCin -2000Vout 1mA
