E3004S.44.86

Active

Prysmian Group

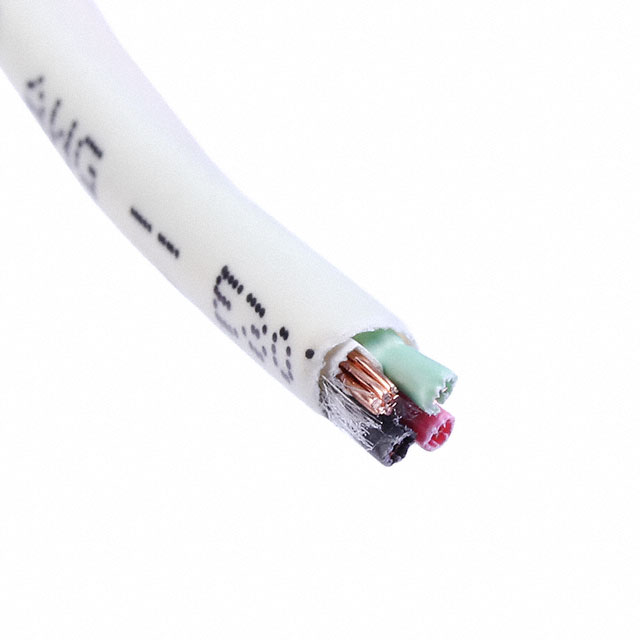

CABLE 4COND 22AWG NATURAL

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 4COND 22AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	E3004S.44.86

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Annealed Bare
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Material	Plenum, Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	2500 ft
Length	762 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	0 °C
Ratings	ASTM B-3
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	22 AWG

Part	Voltage	Number of Conductors	Usage	Jacket Color	Conductor Insulation	Jacket (Insulation) Material	Operating Temperature [Max]	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Conductor Material	Wire Gauge	Length [x]	Length [x]
Prysmian Group E3004S.30.13	300 V	4	Alarm Security Sound	Pink	Poly-Vinyl Chloride (PVC)	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	ASTM B-3	7	30 AWG	1000 ft	304.8 m	0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare	22 AWG
Prysmian Group E3004S.18.86	300 V	4	Alarm Security Sound	Natural	Poly-Vinyl Chloride (PVC)	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	ASTM B-3	7	30 AWG			0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare	22 AWG	500 '	152.4 m
Prysmian Group E3004S.44.86	300 V	4	Alarm Security Sound	Natural	Poly-Vinyl Chloride (PVC)	Plenum Poly-Vinyl Chloride (PVC)	75 ░C	ASTM B-3	7	30 AWG	2500 ft	762 m	0.015 in	0.381 mm	Multi-Conductor	Copper Annealed Bare	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	25000	$ 0.16

General part information

4 Conductor Multi-Conductor Cable Natural 22 AWG 2500' (762.0m)
