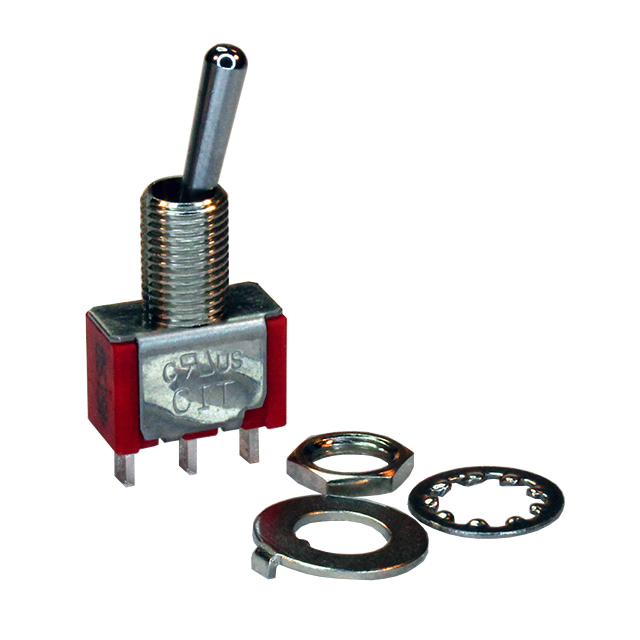

ANT14SEBQE

Active

CIT Relay and Switch

28V 120V SPDT STRAIGHT 50,000 TIMES 5A TOGGLE SWITCHES ROHS

Search across all available documentation for this part.

Active

CIT Relay and Switch

28V 120V SPDT STRAIGHT 50,000 TIMES 5A TOGGLE SWITCHES ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Illumination	Termination Style	Circuit	Voltage Rating - AC	Electrical Life	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Current Rating (Amps)	Actuator Length [x]	Bushing Thread	Actuator Material	Voltage Rating - DC
CIT Relay and Switch ANT14SEBQE	Non-Illuminated	Solder Lug	SPDT	120 V	50000 Cycles	Standard Round	85 °C	-40 °C	Mom-Off-Mom	5 A	10.67 mm	1/4-40	Brass Chrome Plated	28 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 1.88
LCSC	Piece	1	$ 1.46

General part information

Toggle Switch SPDT Panel Mount

Technical documentation and resources
