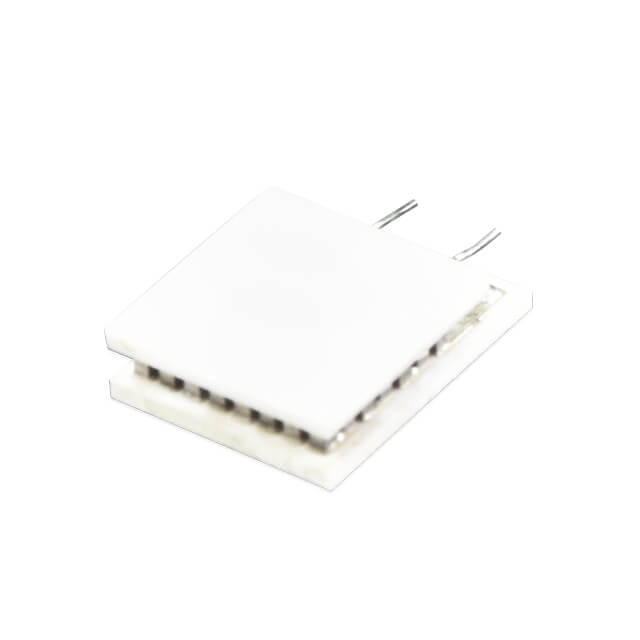

CP151188-271
ActiveCUI Devices
PELTIER, 11 X 8.8 X 2.71 MM, 1.5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP151188-271
ActiveCUI Devices
PELTIER, 11 X 8.8 X 2.71 MM, 1.5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP151188-271 |
|---|---|
| Current - Max [Max] | 1.5 A |
| Delta Tmax @ Th | 70 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 2.71 mm |
| Qmax @ Th | 3.2 W |
| Resistance | 1.93 Ohms |
| Size / Dimension [x] | 11 mm |
| Size / Dimension [y] | 8.8 mm |
| Voltage - Max [Max] | 3.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.57 | |
| 5 | $ 29.60 | |||
| 10 | $ 28.88 | |||
| 25 | $ 27.80 | |||
| 60 | $ 27.09 | |||
| 120 | $ 26.37 | |||
Description
General part information
CP151188 Series
Peltier Module 3.2W @ 27°C 1.5 A
