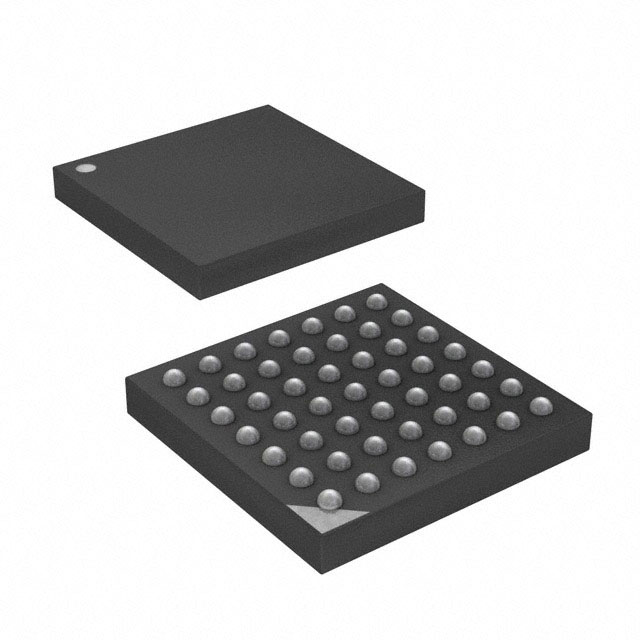

ICE40LM4K-CM49

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 37 I/O 49UCBGA

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 37 I/O 49UCBGA

Technical Specifications

Parameters and characteristics for this part

Specification	ICE40LM4K-CM49

Mounting Type	Surface Mount
Number of I/O	37
Number of LABs/CLBs	440
Number of Logic Elements/Cells	3520
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	49-VFBGA
Supplier Device Package	49-UCBGA (3x3)
Total RAM Bits	81920 Bits

Part	Number of I/O	Number of LABs/CLBs	Package / Case	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Number of Logic Elements/Cells	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Total RAM Bits
LATTICE SEMICONDUCTOR ICE40LM4K-CM36TR1K	28	440	36-VFBGA	36-UCBGA	2.5	2.5	3520	Surface Mount	100 °C	-40 C	81920 Bits
LATTICE SEMICONDUCTOR ICE40LM4K-CM49	37	440	49-VFBGA	49-UCBGA (3x3)			3520	Surface Mount	100 °C	-40 C	81920 Bits
LATTICE SEMICONDUCTOR ICE40LM4K-SWG25TR1K	18	440	25-XFBGA WLCSP	25-WLCSP	1.7	1.7	3520	Surface Mount	100 °C	-40 C	81920 Bits
LATTICE SEMICONDUCTOR ICE40LM4K-CM36	28	440	36-VFBGA	36-UCBGA	2.5	2.5	3520	Surface Mount	100 °C	-40 C	81920 Bits
LATTICE SEMICONDUCTOR ICE40LM4K-SWG25TR50	18	440	25-XFBGA WLCSP	25-WLCSP	1.7	1.7	3520	Surface Mount	100 °C	-40 C	81920 Bits

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.60

General part information

iCE40™ LM Field Programmable Gate Array (FPGA) IC 37 81920 3520 49-VFBGA
