TCK104G,LF

Obsolete

Toshiba Semiconductor and Storage

IC PWR SWITCH P-CHAN 1:1 6WCSP

Search across all available documentation for this part.

Obsolete

Toshiba Semiconductor and Storage

IC PWR SWITCH P-CHAN 1:1 6WCSP

Technical Specifications

Parameters and characteristics for this part

Specification	TCK104G,LF

Current - Output (Max) [Max]	800 mA
Fault Protection	Over Temperature, Current Limiting (Fixed)
Features	Slew Rate Controlled, Load Discharge
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	P-Channel

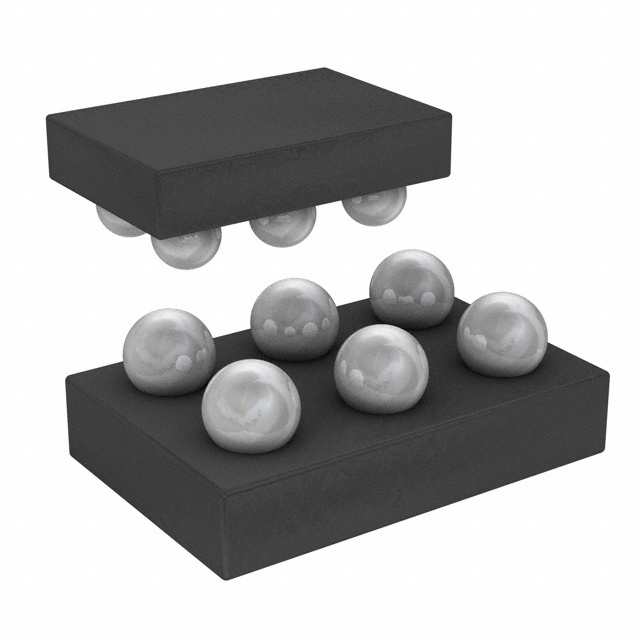

Package / Case	6-UFBGA, WLCSP
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	50 mOhm
Supplier Device Package	6-WCSPB (0.80x1.2)
Switch Type	General Purpose
Voltage - Load [Max]	5.5 V
Voltage - Load [Min]	1.1 V
Voltage - Supply (Vcc/Vdd)	False

Part	Mounting Type	Fault Protection	Rds On (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Supplier Device Package	Input Type	Interface	Number of Outputs	Package / Case	Ratio - Input:Output [custom]	Voltage - Supply (Vcc/Vdd)	Current - Output (Max) [Max]	Switch Type	Voltage - Load [Min]	Voltage - Load [Max]	Features	Output Configuration
Toshiba Semiconductor and Storage TCK104G,LF	Surface Mount	Current Limiting (Fixed) Over Temperature	50 mOhm	85 °C	-40 °C	P-Channel	6-WCSPB (0.80x1.2)	Non-Inverting	On/Off	1	6-UFBGA WLCSP	1:1		800 mA	General Purpose	1.1 V	5.5 V	Load Discharge Slew Rate Controlled	High Side

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 P-Channel 800mA 6-WCSPB (0.80x1.2)
