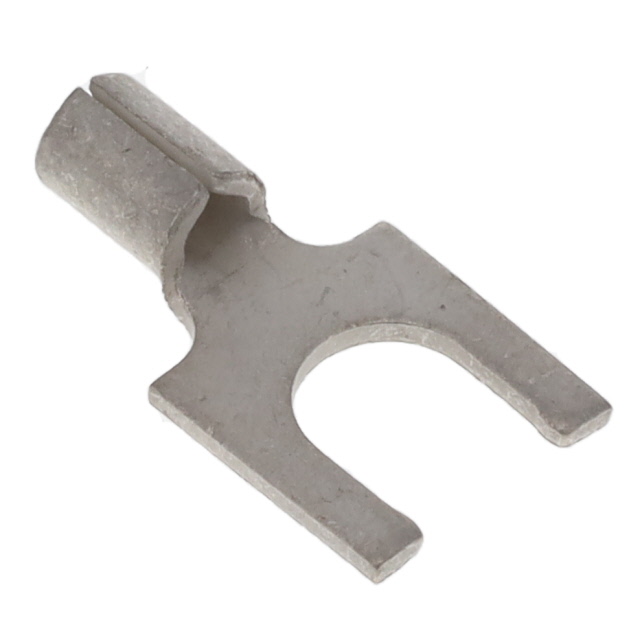

0191290045

Active

Molex

CONN SPADE TERM 18-22AWG #8

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Product Specification

0191290045

Active

Molex

CONN SPADE TERM 18-22AWG #8

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Product Specification

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0191290045

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Length - Overall [x]	14.22 mm
Length - Overall [x]	0.56 in
Length - Ring Center to Termination	5.26 mm
Length - Ring Center to Termination [x]	0.207 in
Length - Termination	4.19 mm
Length - Termination	0.165 in
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Standard
Termination	Crimp
Tongue Inside Opening [x]	0.173 in
Tongue Inside Opening [x]	4.39 mm
Width - Outer Edges [x]	7.39 mm
Width - Outer Edges [x]	0.291 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

019129 Series

Part	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Length - Overall [x]	Length - Overall [x]	Contact Finish	Length - Termination	Length - Termination	Insulation	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Contact Material	Termination	Terminal Type	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination	Wire Gauge [Max]	Wire Gauge [Min]	Length - Ring Center to Termination
Molex 0191290022	Free Hanging (In-Line)	0.295 in	7.49 mm	0.173 in	4.39 mm	14.48 mm	0.57 in	Tin	4.19 mm	0.165 in	Non-Insulated	8 Stud	0.22 in	5.59 mm	Copper	Crimp	Standard
Molex 0191290028	Free Hanging (In-Line)			0.146 in	3.71 mm	14.2 mm	0.559 "	Tin	4.19 mm	0.165 in	Non-Insulated				Copper	Crimp	Standard	6 Stud	0.247 in	6.27 mm	5.49 mm	0.216 in
Molex 0191290021	Free Hanging (In-Line)	0.295 in	7.49 mm	0.173 in	4.39 mm	14.48 mm	0.57 in	Tin	4.19 mm	0.165 in	Non-Insulated	8 Stud	0.22 in	5.59 mm	Copper	Crimp	Standard
Molex 0191290045	Free Hanging (In-Line)	0.291 in	7.39 mm	0.173 in	4.39 mm	14.22 mm	0.56 in	Electro-Tin	4.19 mm	0.165 in	Non-Insulated	8 Stud	0.207 in		Copper	Crimp	Standard						5.26 mm	22 AWG	17.5 AWG
Molex 0191290043	Free Hanging (In-Line)	0.291 in	7.39 mm	0.198 in	5.03 mm	14.22 mm	0.56 in	Electro-Tin	4.19 mm	0.165 in	Non-Insulated		0.207 in		Copper	Crimp	Standard	10 Stud					5.26 mm	22 AWG	17.5 AWG
Molex 0191290030	Free Hanging (In-Line)			0.146 in	3.71 mm	14.2 mm	0.559 "	Tin	4.19 mm	0.165 in	Non-Insulated				Copper	Crimp	Standard	6 Stud	0.247 in	6.27 mm	5.49 mm	0.216 in
Molex 0191290050	Free Hanging (In-Line)			0.146 in	3.71 mm	17.02 mm	0.67 "	Electro-Tin	4.19 mm	0.165 in	Non-Insulated		0.32 in	8.13 mm	Copper	Crimp	Standard	6 Stud	0.25 "	6.35 mm				22 AWG	17.5 AWG
Molex 0191290053	Free Hanging (In-Line)	0.187 in	4.75 mm	0.119 in	3.02 mm	12.75 mm	0.502 in	Electro-Tin	4.19 mm	0.165 in	Non-Insulated				Copper	Crimp	Standard	4 Stud					4.65 mm	22 AWG	17.5 AWG	0.183 in
Molex 0191290041	Free Hanging (In-Line)	0.245 in	6.22 mm	0.119 in	3.02 mm	14.22 mm	0.56 in	Electro-Tin	4.19 mm	0.165 in	Non-Insulated		0.207 in		Copper	Crimp	Standard	4 Stud					5.26 mm	22 AWG	17.5 AWG
Molex 0191290040	Free Hanging (In-Line)	0.245 in	6.22 mm	0.119 in	3.02 mm	14.22 mm	0.56 in	Electro-Tin	4.19 mm	0.165 in	Non-Insulated		0.207 in		Copper	Crimp	Standard	4 Stud					5.26 mm	22 AWG	17.5 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.17
		10	$ 0.13
		25	$ 0.11
		50	$ 0.10
		100	$ 0.10
		250	$ 0.09
		500	$ 0.09
		1000	$ 0.08
		3000	$ 0.07

Description

General part information

019129 Series

8 Stud Spade Terminal Connector Crimp 18-22 AWG

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
