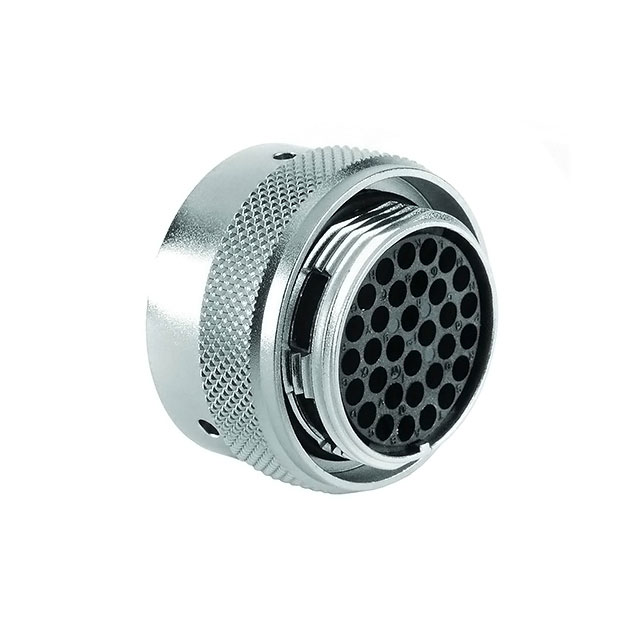

RT0W61832SNH

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 32POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 32POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W61832SNH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Shielding	Shielded
Type	For Female Sockets

Part	Shell Material	Contact Finish Thickness - Mating	Primary Material	Shell Finish	Color	Termination	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Fastening Type	Ingress Protection	Contact Finish - Mating	Current Rating (Amps)	Mounting Type	Orientation	Connector Type	Features	Contact Size	Contact Type	Shielding	Contact Shape	Material Flammability Rating	Note	Type	Insert Material	Housing Color
Amphenol Sine Systems Corp RT0W61832PNH-K	Zinc Die Cast	Flash	Metal	Nickel	Silver	Crimp	32	18	-40 °C	105 ░C	150 VAC	Bayonet Lock	IP67 - Dust Tight Waterproof	Gold	7.5 A	Free Hanging (In-Line)	N	Male Pins Plug
Amphenol Sine Systems Corp RT0W61832SNH	Zinc Alloy			Nickel			32	18	-40 °C	105 ░C		Bayonet Lock	IP67 - Dust Tight Waterproof			Free Hanging (In-Line)	N	Plug Housing	Coupling Nut	20	Crimp	Shielded	Circular	UL94 V-0	Contacts Not Included	For Female Sockets	Thermoplastic	Silver
Amphenol Sine Systems Corp RT0W61832PNHEC03
Amphenol Sine Systems Corp RT0W61832PNHEC	Zinc Alloy			Nickel			32	18	-40 °C	105 ░C		Bayonet Lock	IP67 - Dust Tight Waterproof			Free Hanging (In-Line)	N	Plug Housing	Backshell Coupling Nut	20	Crimp	Shielded	Circular	UL94 V-0	Contacts Not Included	For Male Pins	Thermoplastic	Silver
Amphenol Sine Systems Corp RT0W61832SNHEC	Zinc Alloy			Nickel			32	18	-40 °C	105 ░C		Bayonet Lock	IP67 - Dust Tight Waterproof			Free Hanging (In-Line)	N	Plug Housing	Backshell Coupling Nut	20	Crimp	Shielded	Circular	UL94 V-0	Contacts Not Included	For Female Sockets	Thermoplastic	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 19.93

General part information

32 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
