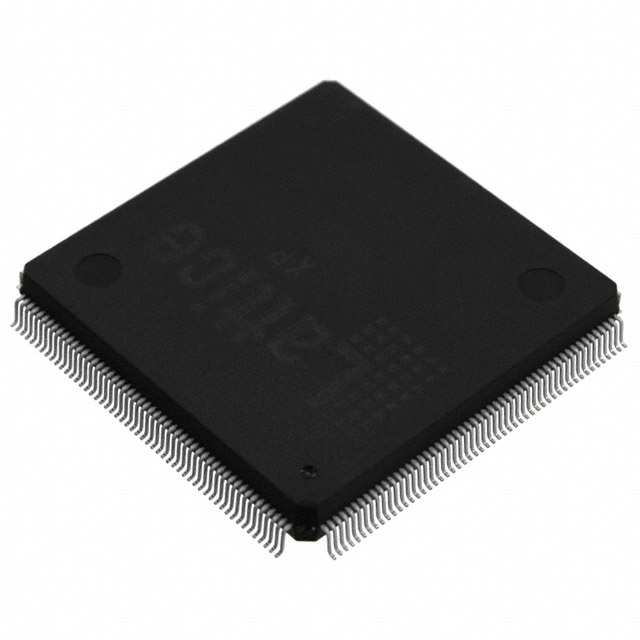

LFXP6E-3QN208I

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 142 I/O 208QFP

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 142 I/O 208QFP

Technical Specifications

Parameters and characteristics for this part

Specification	LFXP6E-3QN208I

Mounting Type	Surface Mount
Number of I/O	142
Number of Logic Elements/Cells	6000
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 C
Package / Case	208-BFQFP
Supplier Device Package	208-PQFP (28x28)
Total RAM Bits	73728

Part	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of I/O	Number of Logic Elements/Cells	Total RAM Bits	Voltage - Supply [Max]	Voltage - Supply [Min]
LATTICE SEMICONDUCTOR LFXP6E-3Q208I	208-PQFP (28x28)	208-BFQFP	100 °C	-40 C	Surface Mount	142	6000	73728
LATTICE SEMICONDUCTOR LFXP6E-3QN208I	208-PQFP (28x28)	208-BFQFP	100 °C	-40 C	Surface Mount	142	6000	73728
LATTICE SEMICONDUCTOR LFXP6C-3Q208C	208-PQFP (28x28)	208-BFQFP	85 °C	0 °C	Surface Mount	142	6000	73728	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LFXP6E-3FN256C	256-FPBGA (17x17)	256-BGA	85 °C	0 °C	Surface Mount	188	6000	73728
LATTICE SEMICONDUCTOR LFXP6C-3T144C	144-TQFP (20x20)	144-LQFP	85 °C	0 °C	Surface Mount	100 I/O	6000	73728	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LFXP6E-5T144C	144-TQFP (20x20)	144-LQFP	85 °C	0 °C	Surface Mount	100 I/O	6000	73728
LATTICE SEMICONDUCTOR LFXP6E-5F256C	256-FPBGA (17x17)	256-BGA	85 °C	0 °C	Surface Mount	188	6000	73728
LATTICE SEMICONDUCTOR LFXP6C-5TN144C	144-TQFP (20x20)	144-LQFP	85 °C	0 °C	Surface Mount	100 I/O	6000	73728	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LFXP6C-3QN208C	208-PQFP (28x28)	208-BFQFP	85 °C	0 °C	Surface Mount	142	6000	73728	3.465 V	1.71 V
LATTICE SEMICONDUCTOR LFXP6C-3T144I	144-TQFP (20x20)	144-LQFP	100 °C	-40 C	Surface Mount	100 I/O	6000	73728	3.465 V	1.71 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

XP Field Programmable Gate Array (FPGA) IC 142 73728 6000 208-BFQFP
