ASP-129637-03

Active

Samtec Inc.

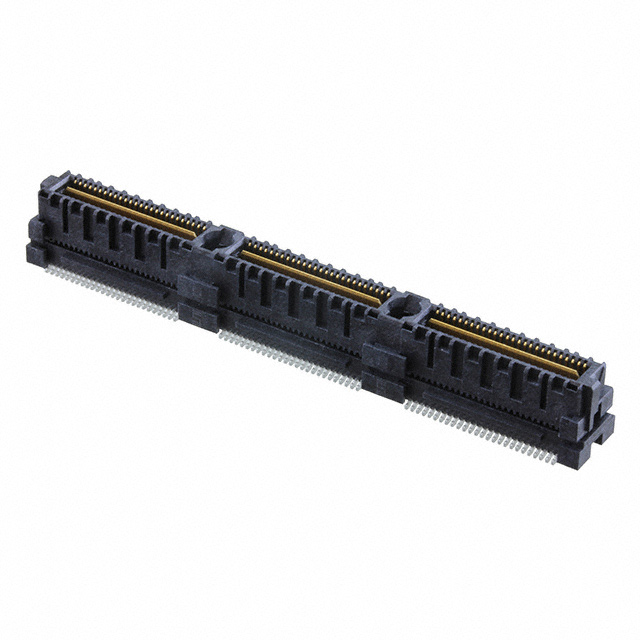

CONN HDR 156POS SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HDR 156POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	ASP-129637-03

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board [z]	8.68 mm
Height Above Board [z]	0.342 in
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

Part	Connector Type	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]
Samtec Inc. ASP-129637-03	Header Outer Shroud Contacts	8.68 mm	0.342 in	0.76 Ám	30 Áin	Surface Mount	Gold	2	0.64 mm	0.025 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

156 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
