0151350501

Active

Molex

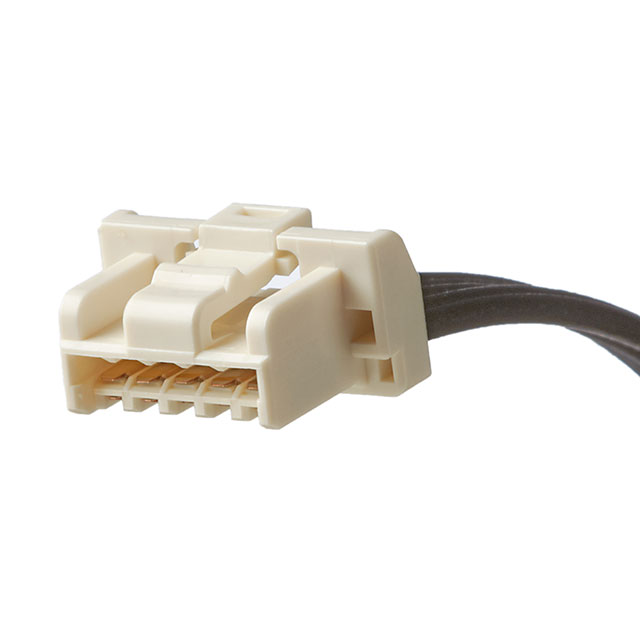

CLICKMATE 5 CIRCUIT 100MM

Search across all available documentation for this part.

Active

Molex

CLICKMATE 5 CIRCUIT 100MM

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Length	Length	Length	Cable Termination	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Connector Type	Number of Rows	Features	Length [x]	Length [x]	Length [x]
Molex 0151350402	Tin	150 mm	5.91 "	0.492 ft	Crimp	4	16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock
Molex 0151350501	Tin	100 mm	3.94 "	0.328 '	Crimp		16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock
Molex 0151350805	Tin				Crimp	8	16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock	17.76 in	450 mm
Molex 0151350205	Tin				Crimp	2	16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock	17.76 in	450 mm
Molex 0151350706	Tin	600 mm		1.97 ft	Crimp	7	16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock
Molex 0151350403	Tin				Crimp	4	16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock	0.984 '	300 mm	11.81 "
Molex 0151350806	Tin	600 mm		1.97 ft	Crimp	8	16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock
Molex 0151350206	Tin	600 mm		1.97 ft	Crimp	2	16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock
Molex 0151350701	Tin	100 mm	3.94 "	0.328 '	Crimp	7	16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock
Molex 0151350500	Tin	50 mm	1.97 "	0.164 '	Crimp		16 µin	0.41 µm	0.059 "	1.5 mm	Plug to Plug	1	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 2.37

General part information

5 Position Cable Assembly Rectangular Plug to Plug 0.328' (100.00mm, 3.94")
