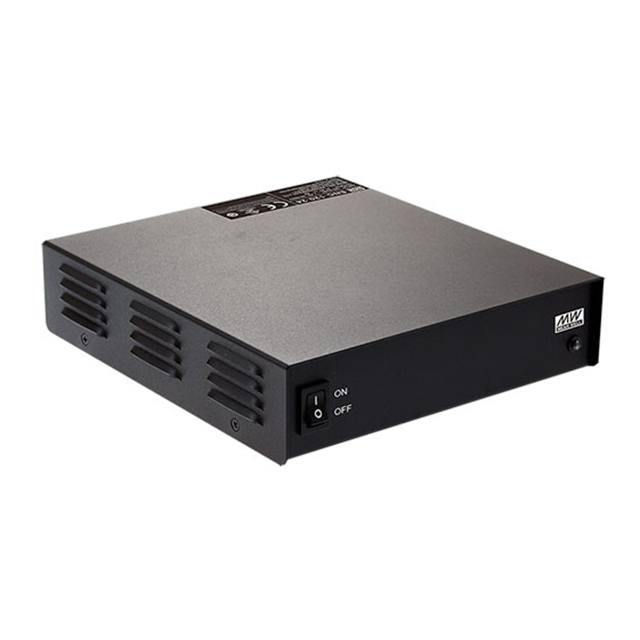

ENC-120-24
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 24V 4A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ENC-120-24
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 24V 4A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ENC-120-24 |
|---|---|
| Approval Agency | CE, EAC, cULus, CB |
| Battery Cell Size | 24 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 4 A |
| Features | LED Indicator |
| Mounting Type | Desktop |
| Number of Cells | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Max [Max] | 115 W |
| Size / Dimension [x] | 7.56 " |
| Size / Dimension [x] | 192 mm |
| Size / Dimension [y] | 178 mm |
| Size / Dimension [y] | 7.01 " |
| Size / Dimension [z] | 1.96 in |
| Size / Dimension [z] | 49.8 mm |
| Termination Style | Terminal Block |
| Type | Desktop |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Weight | 980 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 68.99 | |
| 5 | $ 65.71 | |||
| 10 | $ 64.34 | |||
| 25 | $ 62.58 | |||
Description
General part information
ENC-120 Series
Desktop Battery Charger 24V 4A 24V
