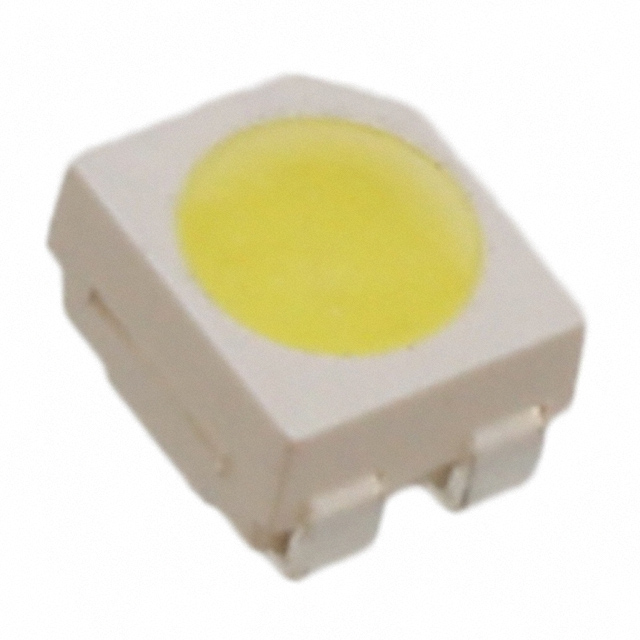

CLA1A-MKW-CXAYA513
ActiveCree LED
LED CLA1A-WKW WHT 3200K 4PLCC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLA1A-MKW-CXAYA513
ActiveCree LED
LED CLA1A-WKW WHT 3200K 4PLCC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLA1A-MKW-CXAYA513 |
|---|---|
| CCT (K) | 3200 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 35 mA |
| Current - Test | 30 mA |
| Flux @ 25°C, Current - Test | 6 lm |
| Height - Seated (Max) [Max] [z] | 2.1 mm |
| Height - Seated (Max) [Max] [z] | 0.083 " |
| Lumens/Watt @ Current - Test | 56 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 0.11 in |
| Size / Dimension [y] | 2.8 mm |
| Supplier Device Package | 4-PLCC |
| Voltage - Forward (Vf) (Typ) | 3.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.21 | |||
| 100 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Digi-Reel® | 1 | $ 0.23 | ||
| 10 | $ 0.21 | |||
| 100 | $ 0.20 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 2000 | $ 0.18 | ||
| 50000 | $ 0.16 | |||
Description
General part information
CLA1A Series
LED Lighting CLA1A-WKW/MKW White, Warm 3200K 3.6V 30mA 4-PLCC
