HPH2-A-16-UA

Active

Adam Tech

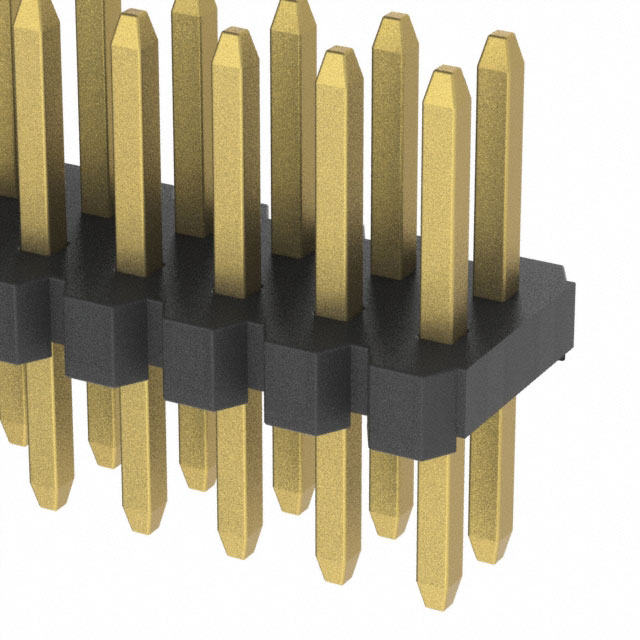

CONN UNSHROUDED HEADER HDR 16 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

HPH2-A-16-UA

Active

Adam Tech

CONN UNSHROUDED HEADER HDR 16 POS 1.27MM SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HPH2-A-16-UA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	0.091 in
Contact Length - Post	2.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.039 "
Insulation Height	1 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	6.3 mm
Overall Contact Length [x]	0.248 in
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

HPH2-A Series

Part	Material Flammability Rating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Termination	Contact Length - Mating	Contact Length - Mating	Overall Contact Length [x]	Overall Contact Length	Shrouding	Insulation Material	Insulation Color	Contact Finish Thickness - Mating	Voltage Rating	Number of Positions	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Contact Material	Number of Rows	Contact Finish - Mating	Contact Finish - Post	Mounting Type	Contact Length - Post	Contact Length - Post	Connector Type	Fastening Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Type	Number of Positions
Adam Tech HPH2-A-18-UA	UL94 V-0	Square	0.05 in	1.27 mm	Solder	3 mm	0.118 in	0.248 in	6.3 mm	Unshrouded	Thermoplastic	Black	Flash	250 VAC	18	Flash	0.05 in	1.27 mm	Brass	2	Gold	Gold	Through Hole	0.091 in	2.3 mm	Header	Push-Pull	0.039 "	1 mm	-40 °C	105 ░C	All	Male Pin
Adam Tech HPH2-A-10-UA	UL94 V-0	Square	0.05 in	1.27 mm	Solder	3 mm	0.118 in	0.248 in	6.3 mm	Unshrouded	Thermoplastic	Black	Flash	250 VAC	10	Flash	0.05 in	1.27 mm	Brass	2	Gold	Gold	Through Hole	0.091 in	2.3 mm	Header	Push-Pull	0.039 "	1 mm	-40 °C	105 ░C	All	Male Pin
Adam Tech HPH2-A-06-UA	UL94 V-0	Square	0.05 in	1.27 mm	Solder	3 mm	0.118 in	0.248 in	6.3 mm	Unshrouded	Thermoplastic	Black	Flash	250 VAC	6	Flash	0.05 in	1.27 mm	Brass	2	Gold	Gold	Through Hole	0.091 in	2.3 mm	Header	Push-Pull	0.039 "	1 mm	-40 °C	105 ░C	All	Male Pin
Adam Tech HPH2-A-16-UA	UL94 V-0	Square	0.05 in	1.27 mm	Solder	3 mm	0.118 in	0.248 in	6.3 mm	Unshrouded	Thermoplastic	Black	Flash	250 VAC		Flash	0.05 in	1.27 mm	Brass	2	Gold	Gold	Through Hole	0.091 in	2.3 mm	Header	Push-Pull	0.039 "	1 mm	-40 °C	105 ░C	All	Male Pin	16
